Set of BMW Performance Brakes front/rear for BMW 3 Series E90 316i (2007)

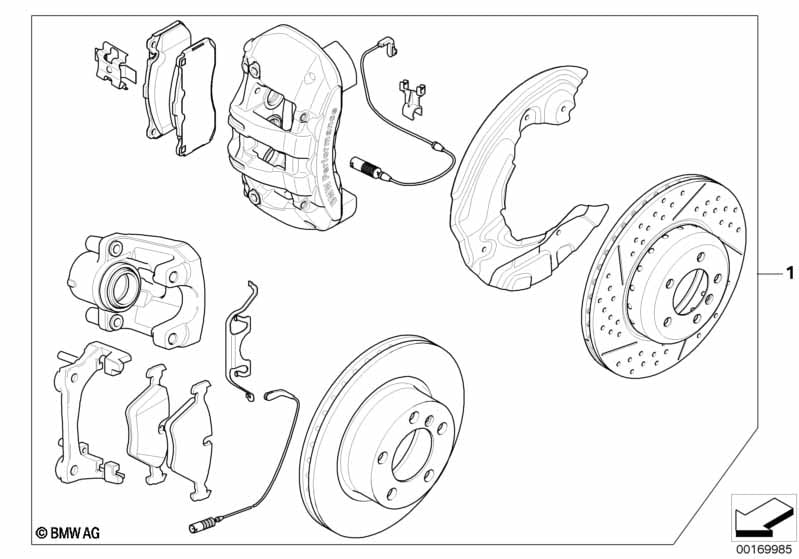

This Set of BMW Performance Brakes front/rear technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 316i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Usable load increase and Reinforced brakes |
S100A=No S102A=No |
||||||||
| For vehicles with 17' WTW Multi Spoke 284 or 18" LAW Radial Spoke 196 or Star spoke composite 179, 18-inch or 19" LAW Radial Spoke composite wheel 198 or Star spoke 199, 19-inch or Star spoke composite 179, 19-inch or 19'' LAW M Cross Spoke 101 or 18" LAW Radial Spoke 216 or 19" LAW Performance Double Spoke 269 or 17" LAW Radial Spoke 32 or 17" LAW Star Spoke 199 or 17" WKR Star Spoke 199 or 17" WKR Radial Spoke 32 or 19" LAW Star Spoke 311 or 19" LAW Performance Double Spoke 313 Important! At least 17" LA wheels required |
SZKYA=Yes SZL8A=Yes SZLBA=Yes SZLDA=Yes SZLFA=Yes SZLHA=Yes SZLLA=Yes SZLPA=Yes SZR0A=Yes SZR2A=Yes SZR4A=Yes SZWLA=Yes SZWMA=Yes SZXSA=Yes SZXXA=Yes |
|||||||||
| 01 | Sports brake retrofit kit | BMW PERFORMANCE | 1 | 03/2007 | 34110444771 | ENDED | Shop at ECS Tuning | |||
| For vehicles with BMW LA wheel, Double Spoke 313 or BMW LA wheel ellipsoid spoke 162 or BMW LA wheel/double spoke 195 or 19" LAW M Performance Double Spoke 313 or BMW alloy wheel, double spoke 161 or BMW alloy wheel, double spoke 161 or BMW light alloy wheel, spider spoke 157 or BMW LA wheel, star spoke 185 or BMW LA wheel, star spoke 189 or BMW light alloy wheel, spider spoke 158 or BMW light alloy wheel, spider spoke 159 or BMW light alloy wheel, cross spoke 197 or BMW light alloy wheel, spider spoke 160 or BMW light alloy wheel, spider spoke 187 or BMW light alloy wheel, spider spoke 190 or BMW light alloy wheel, radial spoke 216 or BMW light alloy wheel, V-spoke 188 or BMW LA wheel, V-spoke 285 or BMW LA wheel, Individual 152 I, 18" or BMW LA wheel, V-spoke 228 individual or BMW alloy wheel, M double spoke 194 or BMW alloy wheel, M spider spoke 193 or BMW alloy wheel, M double spoke 225 or BMW LA wheel, M Double Spoke 313 or BMW alloy wheel, M double spoke 194 or BMW LA wheel, star spoke 230 or BMW LA wheel, star spoke 286 or BMW LA wheel, star spoke 287 or BMW LA wheel, multispoke 284 Important! At least 17" LA wheels required |
S2A9A=Yes S2ABA=Yes S2B4A=Yes S2B6A=Yes S2BGA=Yes S2BZA=Yes S2C4A=Yes S2C5A=Yes S2C6A=Yes S2CYA=Yes S2CZA=Yes S2DAA=Yes S2HBA=Yes S2HCA=Yes S2HDA=Yes S2HKA=Yes S2KEA=Yes S2KUA=Yes S2M0A=Yes S2M8A=Yes S2MEA=Yes S2MFA=Yes S2MPA=Yes S2NFA=Yes S2PKA=Yes S2R4A=Yes S2S1A=Yes S2S2A=Yes S2SZA=Yes |
|||||||||
| 01 | Sports brake retrofit kit | BMW PERFORMANCE | 1 | 03/2007 | 34110444771 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 316i Set of BMW Performance Brakes front/rear?
- This technical diagram illustrates the Set of BMW Performance Brakes front/rear within the Retrofitting / conversion / accessories group for the 3 Series E90 316i produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the Sports brake retrofit kit (Part #34110444771).
- Which models use the hardware listed in this Set of BMW Performance Brakes front/rear?
- The hardware and components featured in the Set of BMW Performance Brakes front/rear are specific to the 3 Series E90 316i produced during 2007. These technical specifications ensure that parts like the Sports brake retrofit kit (34110444771) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Set of BMW Performance Brakes front/rear assembly?
- Each item in the Set of BMW Performance Brakes front/rear corresponds to the numbered list below the illustration. For the 3 Series E90 316i, you can identify the Sports brake retrofit kit by locating its position on the schematic, which then links to the official BMW part number 34110444771 for the Retrofitting / conversion / accessories section.
