BMW Performance Aerodynamics for BMW 1 Series E81 118i (2011)

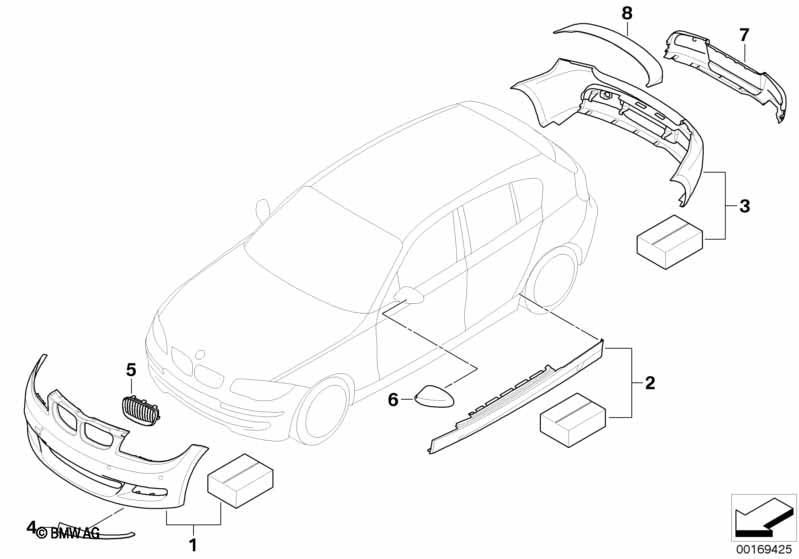

This BMW Performance Aerodynamics technical drawing provides a detailed breakdown of the assembly for the 1 Series E81 118i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: The installation instructions are not included in the retrofit kit. The installation instructions shall be printed out from the Electronic Parts Catalog (EPC) on that day and given to the customer. |
|||||||||
| For vehicles with National version Korea and Headlight cleaning system and Park Distance Control (PDC) and Auxiliary heating |
L802A=No S502A=No S508A=No S536A=No |
|||||||||
| 01 | BMW Performance Aero Pack, front, pr. | 1 | 51110442870 | $789.00 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with National version Korea and Headlight cleaning system and Park Distance Control (PDC) and Auxiliary heating |
L802A=No S502A=Yes S508A=No S536A=No |
|||||||||
| 01 | BMW Performance Aero Pack, front, pr. | 1 | 51110442872 | $789.00 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with National version Korea and Headlight cleaning system and Park Distance Control (PDC) and Auxiliary heating |
L802A=No S502A=No S508A=Yes S536A=No |
|||||||||
| 01 | BMW Performance Aero Pack, front, pr. | 1 | 51110442871 | $789.00 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with National version Korea and Headlight cleaning system and Park Distance Control (PDC) and Auxiliary heating |
L802A=No S502A=Yes S508A=Yes S536A=No |
|||||||||
| 01 | BMW Performance Aero Pack, front, pr. | 1 | 51110442873 | $789.00 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with National version Korea and Headlight cleaning system and Park Distance Control (PDC) and Auxiliary heating |
L802A=No S502A=Yes S508A=Yes S536A=Yes |
|||||||||
| 01 | BMW Performance Aero Pack, frt., painted | 1 | 51110445637 | ENDED, +core | Shop at ECS Tuning | |||||
| 01 | BMW Performance Aero Pack, frt., painted | 1 | 51110445638 | ENDED, +core | Shop at ECS Tuning | |||||
| 01 | BMW Performance Aero Pack, frt., painted | 1 | 51110445639 | ENDED, +core | Shop at ECS Tuning | |||||
| 01 | BMW Performance Aero Pack, frt., painted | 1 | 51110445640 | ENDED, +core | Shop at ECS Tuning | |||||
| 02 | BMW Performance Aero Pack, rocker, pr. | 2-TÜRER | 1 | 51770442891 | $315.95 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | BMW Performance Aero Pack, rocker, ptd. | 2-TÜRER | 1 | 51770445641 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Park Distance Control (PDC), rear and Park Distance Control (PDC) and M Aerodynamics package |
S507A=No S508A=No S715A=No |
|||||||||
| 03 | BMW Performance Aero Pack, rear, pr. | 1 | 51120442894 | ENDED | Shop at ECS Tuning | |||||
| 03 | BMW Performance Aero Pack, rear, painted | 1 | 51120445643 | ENDED, +core | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC), rear and Park Distance Control (PDC) and M Aerodynamics package |
S507A=Yes S508A=No S715A=No |
|||||||||
| 03 | BMW Performance Aero Pack, rear, pr. | 1 | 51120442895 | ENDED | Shop at ECS Tuning | |||||
| 03 | BMW Performance Aero Pack, rear, painted | 1 | 51120445644 | ENDED, +core | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC), rear and Park Distance Control (PDC) and M Aerodynamics package |
S507A=No S508A=Yes S715A=No |
|||||||||
| 03 | BMW Performance Aero Pack, rear, pr. | 1 | 51120442895 | ENDED | Shop at ECS Tuning | |||||
| 03 | BMW Performance Aero Pack, rear, painted | 1 | 51120445644 | ENDED, +core | Shop at ECS Tuning | |||||
| For vehicles with National version Korea and National version China |
L802A=No L8AAA=No |
|||||||||
| 04 | Front splitter | PERFORMANCE | 1 | 51190413426 | $358.95 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Front splitter | PERFORMANCE | 1 | 51190413427 | $358.95 | ENDED, +core | Shop at ECS Tuning | |||
| Front ornamental grille fits BMW Performance Aero package, Front |
||||||||||
| 05 | Front trim grill, black, right | M PERFORMANCE | 1 | 51710441920 | $66.00 | ENDED | Shop at ECS Tuning | |||
| 05 | Front trim grill, black, left | M PERFORMANCE | 1 | 51710441921 | $66.00 | ENDED | Shop at ECS Tuning | |||
| 06 | Ouside mirror shroud, Carbon, right | 1 | 09/2009 | 51162159456 | ENDED | Shop at ECS Tuning | ||||
| 06 | Ouside mirror shroud, Carbon, left | 1 | 09/2009 | 51162159457 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Towing hitch, detachable and M Aerodynamics package and Aerodynamics package |
S235A=No S715A=Yes SZE3A=No |
|||||||||
| 07 | Trim diffuser | CARBON | 1 | 51120413901 | $2121.00 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version China |
L8AAA=No |
|||||||||
| 08 | Rear spoiler | CARBON | 1 | 51710420644 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Adhesive, Betafill 217 | 80ML | 1 | 83195B3A735 | Shop at ECS Tuning | |||||
| For HK and CA: Instead of adhesive 5A326D0 use part number 2289285 (incl. activator!) and clean with solvent cleaner 0417324 first. |
||||||||||
| -- | Betaclean 3350 | 100ML | 1 | 83195B3C6E7 | Shop at ECS Tuning | |||||
| For HK and CA: Instead of adhesive 5A326D0 use part number 2289285 (incl. activator!) and clean with solvent cleaner 0417324 first. |
||||||||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
