BMW Performance Aerodynamics, rear for BMW 1 Series E81 120i (2011)

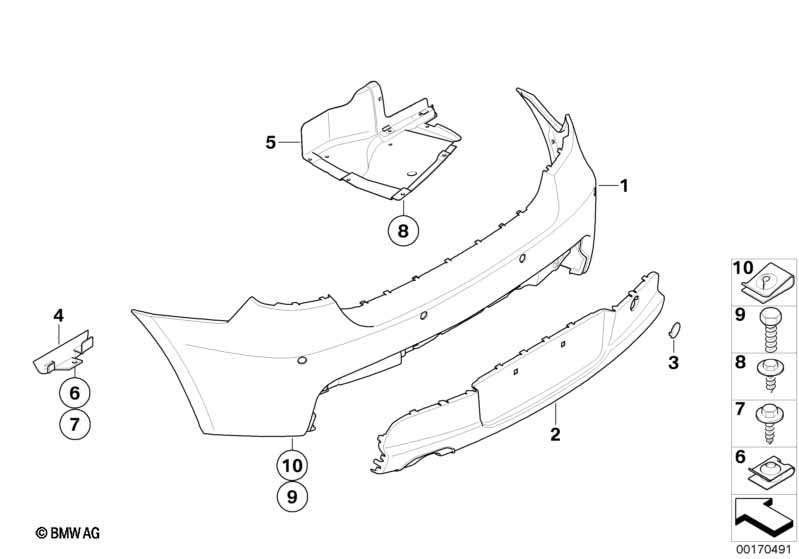

This BMW Performance Aerodynamics, rear technical drawing provides a detailed breakdown of the assembly for the 1 Series E81 120i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Park Distance Control (PDC), rear and Park Distance Control (PDC) |
S507A=Yes S508A=No |
|||||||||
| 01 | Bumper trim panel, rear top primed | -M- | 1 | 51128045548 | +core | Shop at ECS Tuning | ||||
| For vehicles with Park Distance Control (PDC), rear and Park Distance Control (PDC) |
S507A=No S508A=Yes |
|||||||||
| 01 | Bumper trim panel, rear top primed | -M- | 1 | 51128045548 | +core | Shop at ECS Tuning | ||||
| For vehicles with Park Distance Control (PDC), rear and Park Distance Control (PDC) |
S507A=No S508A=No |
|||||||||
| 01 | Bumper trim panel, rear top primed | -M- | 1 | 51128045547 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Trim panel, bumper, rear, bottom | SCHIEFERGRAU | 1 | 51127837325 | +core | Shop at ECS Tuning | ||||
| 03 | Flap, towing eye | -M- | 1 | 51127836964 | Shop at ECS Tuning | |||||
| 04 | Extension for rear left wheel well | 1 | 51127836577 | Shop at ECS Tuning | ||||||
| 05 | Underfloor coating,activ.charcoal filter | 1 | 51757906814 | Shop at ECS Tuning | ||||||
| 06 | C-clip nut, self-locking | ST 4.8 -ZNS3 | 1 | 07146951655 | $0.20 | Shop at ECS Tuning | ||||
| 07 | Hex head screw with washer | ST4,8X16MM | 1 | 07147129160 | $0.36 | Shop at ECS Tuning | ||||
| 08 | Hex bolt with washer | M6X12 | 3 | 07147147513 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Hex head screw | ST4,8X16-ZNS3 | 4 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 10 | Body nut | ST4,8-13-ZNS3 | 4 | 07129904223 | $0.11 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
