BMW Performance Aerodynamics for BMW 1 Series E88 120d (2013)

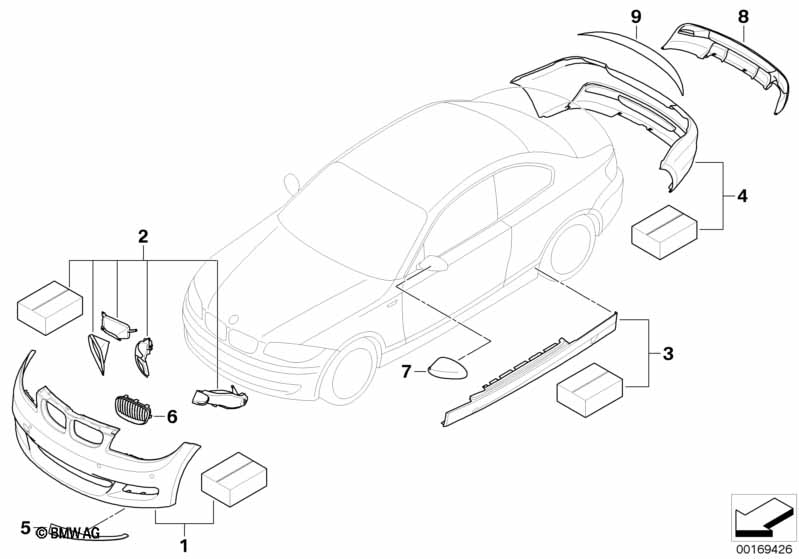

This BMW Performance Aerodynamics technical drawing provides a detailed breakdown of the assembly for the 1 Series E88 120d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: The installation instructions are not included in the retrofit kit. The installation instructions shall be printed out from the Electronic Parts Catalog (EPC) on that day and given to the customer. Important: The Performance Cold Air Package, Kit No. 51 74 0 442 875, must also be installed on 135i vehicles, as the engine can overheat without it. |
|||||||||
| 03 | BMW Performance Aero Pack, rocker, pr. | 2-TÜRER | 1 | 51770442891 | $315.95 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | BMW Performance Aero Pack, rocker, ptd. | 2-TÜRER | 1 | 51770445641 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Park Distance Control (PDC), rear or Park Distance Control (PDC) or M Aerodynamics package |
S507A=Yes S508A=Yes S715A=No |
|||||||||
| 04 | BMW Performance Aero Pack, rear, pr. | 1 | 51120442897 | $721.00 | ENDED | Shop at ECS Tuning | ||||
| 04 | BMW Performance Aero Pack, rear, painted | 1 | 51120445646 | ENDED, +core | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC), rear and Park Distance Control (PDC) and M Aerodynamics package |
S507A=No S508A=No S715A=No |
|||||||||
| 04 | BMW Performance Aero Pack, rear, pr. | 1 | 51120442896 | $721.00 | ENDED | Shop at ECS Tuning | ||||
| 04 | BMW Performance Aero Pack, rear, painted | 1 | 51120445645 | ENDED, +core | Shop at ECS Tuning | |||||
| 06 | Front trim grill, black, right | M PERFORMANCE | 1 | 51710441920 | $66.00 | ENDED | Shop at ECS Tuning | |||
| 06 | Front trim grill, black, left | M PERFORMANCE | 1 | 51710441921 | $66.00 | ENDED | Shop at ECS Tuning | |||
| 07 | Ouside mirror shroud, Carbon, right | 1 | 09/2009 | 51162159456 | ENDED | Shop at ECS Tuning | ||||
| 07 | Ouside mirror shroud, Carbon, left | 1 | 09/2009 | 51162159457 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version China |
L8AAA=No |
|||||||||
| 08 | Trim diffuser | CARBON | 1 | 51120414220 | $1769.00 | ENDED, +core | Shop at ECS Tuning | |||
| 09 | Rear spoiler | CARBON | 1 | 51710432166 | $532.00 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Adhesive 1K | 50 ML | 1 | 82699408866 | $14.79 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
