BMW Performance Aerodynamics, rocker for BMW 1 Series E82 118d (2013)

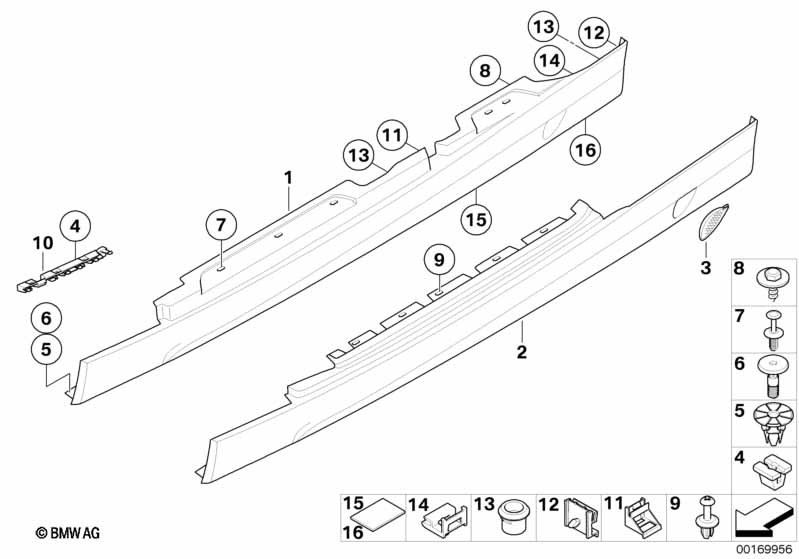

This BMW Performance Aerodynamics, rocker technical drawing provides a detailed breakdown of the assembly for the 1 Series E82 118d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Full cover, rocker panel, primed, left | 1 | 51770432385 | $227.95 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Full cover, rocker panel, primed, ri. | 2-TÜRER | 1 | 51770432386 | $227.95 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Trim cover, grill, rocker panel, le. | 1 | 51770432389 | $14.75 | ENDED, +core | Shop at ECS Tuning | ||||
| 03 | Trim cover, grill, rocker panel, ri. | 1 | 51770432390 | $14.75 | ENDED, +core | Shop at ECS Tuning | ||||
| 05 | Spacer clip | 20 | 07147122912 | $0.48 | Shop at ECS Tuning | |||||
| 06 | Pin | 20 | 07147122913 | $0.23 | Shop at ECS Tuning | |||||
| 09 | Expanding rivet | D = 6MM | 10 | 51111908077 | $0.30 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series E82 118d BMW Performance Aerodynamics, rocker?
- This technical diagram illustrates the BMW Performance Aerodynamics, rocker within the Retrofitting / conversion / accessories group for the 1 Series E82 118d produced during 2013. It provides a detailed exploded view of the components, identifying key parts such as the Full cover, rocker panel, primed, left (Part #51770432385).
- Which models use the hardware listed in this BMW Performance Aerodynamics, rocker?
- The hardware and components featured in the BMW Performance Aerodynamics, rocker are specific to the 1 Series E82 118d produced during 2013. These technical specifications ensure that parts like the Full cover, rocker panel, primed, left (51770432385) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the BMW Performance Aerodynamics, rocker assembly?
- Each item in the BMW Performance Aerodynamics, rocker corresponds to the numbered list below the illustration. For the 1 Series E82 118d, you can identify the Full cover, rocker panel, primed, left by locating its position on the schematic, which then links to the official BMW part number 51770432385 for the Retrofitting / conversion / accessories section.
