BMW Performance Aerodynamics, rear for BMW 1 Series E82 135i (2010)

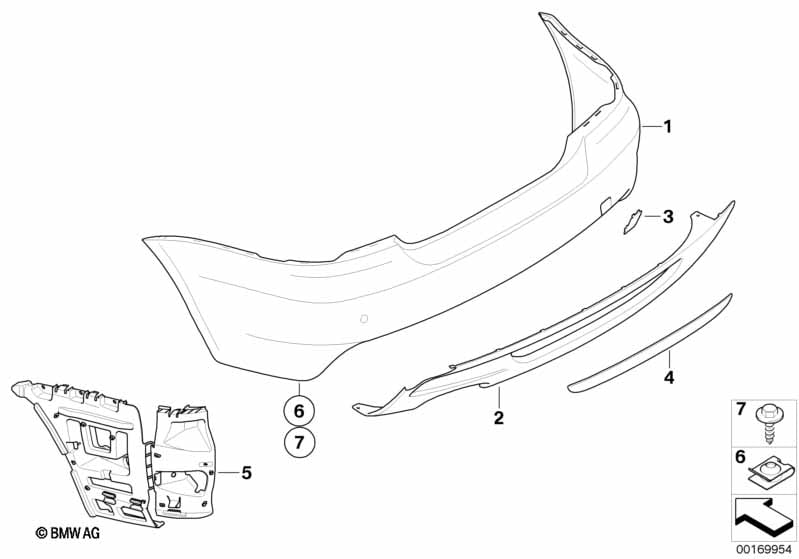

This BMW Performance Aerodynamics, rear technical drawing provides a detailed breakdown of the assembly for the 1 Series E82 135i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Park Distance Control (PDC), rear and Park Distance Control (PDC) |
S507A=No S508A=No |
|||||||||
| 01 | Bumper trim panel, primed, rear | -M- | 1 | 51127892597 | $489.40 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Park Distance Control (PDC), rear and Park Distance Control (PDC) |
S507A=Yes S508A=No |
|||||||||
| 01 | Bumper trim panel, primed, rear | - M - / PDC | 1 | 51127892599 | $508.48 | Shop at ECS Tuning | ||||
| For vehicles with Park Distance Control (PDC), rear and Park Distance Control (PDC) |
S507A=No S508A=Yes |
|||||||||
| 01 | Bumper trim panel, primed, rear | - M - / PDC | 1 | 51127892599 | $508.48 | Shop at ECS Tuning | ||||
| 02 | Trim panel, bumper, rear, bottom | -M- | 1 | 51128045455 | $73.77 | Shop at ECS Tuning | ||||
| 03 | Flap, towing eye, primed | -M- | 1 | 51127892601 | $8.32 | Shop at ECS Tuning | ||||
| 04 | Cover, bumper, rear | -M- | 1 | 51128045456 | $20.57 | Shop at ECS Tuning | ||||
| 05 | Guide left | -M- | 1 | 51128045507 | $16.39 | Shop at ECS Tuning | ||||
| 05 | Guide right | -M- | 1 | 51128045508 | $16.39 | Shop at ECS Tuning | ||||
| 06 | C-clip nut, self-locking | ST 4.8 -ZNS3 | 2 | 07146951655 | $0.20 | Shop at ECS Tuning | ||||
| 07 | Hex head screw with washer | ST4,8X16MM | 2 | 07147129160 | $0.36 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
