BMW Performance Aerodynamics for BMW 3 Series E91 LCI 325d (2012)

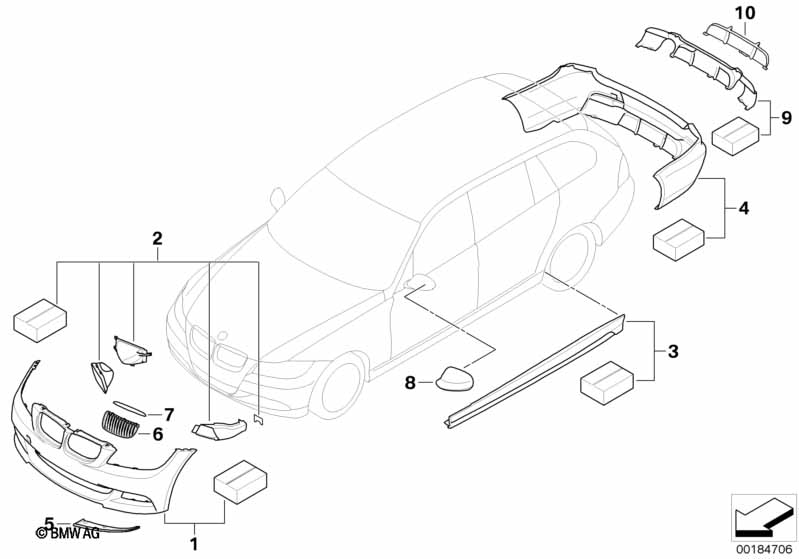

This BMW Performance Aerodynamics technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 LCI 325d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: The installation instructions are not included in the retrofit kit. The installation instructions shall be printed out from the Electronic Parts Catalog (EPC) on that day and given to the customer. Components that are not listed in the installation instructions are installed according to ISTA/AIR. Important: On vehicles 335i and 335d the installation kit 51 19 2 149 516, performance cold air package for engine and brakes, must also be installed to prevent engine from overheating. |
|||||||||
| For vehicles with National version Korea and Headlight cleaning system and Park Distance Control (PDC) and Auxiliary heating and Active cruise control |
L802A=No S502A=Yes S508A=Yes S536A=No S541A=No |
|||||||||
| 01 | BMW Performance Aero Pack, front, pr. | 1 | 51192149515 | ENDED, +core | Shop at ECS Tuning | |||||
| 01 | BMW Performance Aero Pack, frt., painted | ALPINW. 3 (300) | 1 | 51192149532 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | BMW Performance Aero Pack, frt., painted | CODE UNI/MET. | 1 | 51192154308 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with National version Korea and Headlight cleaning system and Park Distance Control (PDC) and Auxiliary heating and Active cruise control |
L802A=No S502A=Yes S508A=No S536A=No S541A=No |
|||||||||
| 01 | BMW Performance Aero Pack, front, pr. | 1 | 51192149514 | ENDED, +core | Shop at ECS Tuning | |||||
| 01 | BMW Performance Aero Pack, frt., painted | ALPINW. 3 (300) | 1 | 51192149530 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | BMW Performance Aero Pack, frt., painted | ALPINW. 3 (300) | 1 | 51192149531 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | BMW Performance Aero Pack, frt., painted | CODE UNI/MET. | 1 | 51192154306 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | BMW Performance Aero Pack, frt., painted | CODE UNI/MET. | 1 | 51192154307 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with National version Korea and Headlight cleaning system and Park Distance Control (PDC) and Auxiliary heating and Active cruise control |
L802A=No S502A=No S508A=No S536A=No S541A=No |
|||||||||
| 01 | BMW Performance Aero Pack, front, pr. | 1 | 51192149512 | ENDED, +core | Shop at ECS Tuning | |||||
| 01 | BMW Performance Aero Pack, frt., painted | ALPINW. 3 (300) | 1 | 51192149529 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | BMW Performance Aero Pack, frt., painted | CODE UNI/MET. | 1 | 51192154305 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with National version Korea and Headlight cleaning system and Park Distance Control (PDC) and Auxiliary heating and Active cruise control |
L802A=No S502A=No S508A=Yes S536A=No S541A=No |
|||||||||
| 01 | BMW Performance Aero Pack, front, pr. | 1 | 51192149513 | ENDED, +core | Shop at ECS Tuning | |||||
| 03 | BMW Performance Aero Pack, rocker, pr. | 1 | 51192149517 | $472.95 | ENDED, +core | Shop at ECS Tuning | ||||
| 03 | BMW Performance Aero Pack, rocker, ptd. | ALPINW. 3 (300) | 1 | 51192149537 | ENDED, +core | Shop at ECS Tuning | ||||
| 03 | BMW Performance Aero Pack, rocker, ptd. | CODE UNI/MET. | 1 | 51192154314 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Park Distance Control (PDC), rear and Park Distance Control (PDC) and M Aerodynamics package |
S507A=Yes S508A=No S715A=No |
|||||||||
| 04 | BMW Performance Aero Pack, rear, pr. | 1 | 51192152227 | $961.00 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 04 | BMW Performance Aero Pack, rear, painted | ALPINW. 3 (300) | 1 | 51192153932 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 04 | BMW Performance Aero Pack, rear, painted | CODE UNI/MET. | 1 | 51192154320 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Panel for activated carbon filter | 1 | 51717070141 | $16.37 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC), rear and Park Distance Control (PDC) and M Aerodynamics package |
S507A=No S508A=Yes S715A=No |
|||||||||
| 04 | BMW Performance Aero Pack, rear, pr. | 1 | 51192152227 | $961.00 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 04 | BMW Performance Aero Pack, rear, painted | ALPINW. 3 (300) | 1 | 51192153932 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 04 | BMW Performance Aero Pack, rear, painted | CODE UNI/MET. | 1 | 51192154320 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Panel for activated carbon filter | 1 | 51717070141 | $16.37 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC), rear and Park Distance Control (PDC) and M Aerodynamics package |
S507A=No S508A=No S715A=No |
|||||||||
| 04 | BMW Performance Aero Pack, rear, pr. | 1 | 51192152226 | $961.00 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 04 | BMW Performance Aero Pack, rear, painted | ALPINW. 3 (300) | 1 | 51192153931 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 04 | BMW Performance Aero Pack, rear, painted | CODE UNI/MET. | 1 | 51192154319 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Panel for activated carbon filter | 1 | 51717070141 | $16.37 | Shop at ECS Tuning | |||||
| For vehicles with National version Korea and National version China |
L802A=No L8AAA=No |
|||||||||
| 05 | Front splitter | PERFORMANCE | 1 | 51192149509 | $414.95 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Front splitter | PERFORMANCE | 1 | 51192149510 | $414.95 | ENDED, +core | Shop at ECS Tuning | |||
| 06 | Front trim grill, black, left | M PERFORMANCE | 1 | 09/2008 | 51712146911 | $72.50 | ENDED | Shop at ECS Tuning | ||
| 06 | Front trim grill, black, right | M PERFORMANCE | 1 | 09/2008 | 51712146912 | $72.50 | ENDED | Shop at ECS Tuning | ||
| 08 | Ouside mirror shroud, Carbon, left | 1 | 09/2008 | 51162146651 | $373.95 | ENDED | Shop at ECS Tuning | |||
| 08 | Ouside mirror shroud, Carbon, right | 1 | 09/2008 | 51162146652 | $373.95 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version China and M Aerodynamics package |
L8AAA=No S715A=Yes |
|||||||||
| 09 | BMW Performance Diffusor Pack rear green | 1 | 51192153917 | $411.95 | ENDED, +core | Shop at ECS Tuning | ||||
| 09 | BMW Performance Diffusor Pack painted | ALPINW. 3 (300) | 1 | 51192153919 | ENDED, +core | Shop at ECS Tuning | ||||
| 09 | BMW Performance Diffusor Pack painted | CODE UNI/MET. | 1 | 51192154324 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with National version China |
L8AAA=No |
|||||||||
| 10 | Trim diffuser | CARBON | 1 | 51122147973 | $670.00 | ENDED, +core | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
