Retrofit, roof rail for BMW 2 Series F46 Gran Tourer LCI 218i (2022)

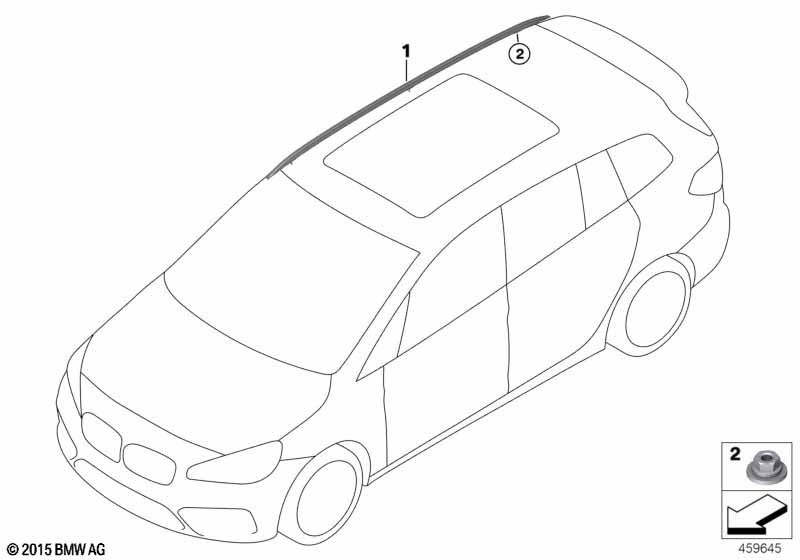

This Retrofit, roof rail technical drawing provides a detailed breakdown of the assembly for the 2 Series F46 Gran Tourer LCI 218i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For installation see ISTA repair instruction Retrofit optionally in "alu-satiniert" or "schwarz" For vehicles with Roof railing black and Roof rail, aluminum, satin finish |
S3AAA=No S3ATA=No |
||||||||
| 01 | Roof rail, silver, satin-finish, left | 1 | 51137333601 | Shop at ECS Tuning | ||||||
| 01 | Roof rail, silver, satin-finish, right | 1 | 51137333602 | Shop at ECS Tuning | ||||||
| 01 | Roof rail, black, left | 1 | 51137333603 | Shop at ECS Tuning | ||||||
| 01 | Roof rail, black, right | 1 | 51137333604 | Shop at ECS Tuning | ||||||
| 02 | Hex nut | 6 | 07147195759 | $1.16 | Shop at ECS Tuning | |||||
