Retrofit, roof rail for BMW 5 Series F11 530i (2011)

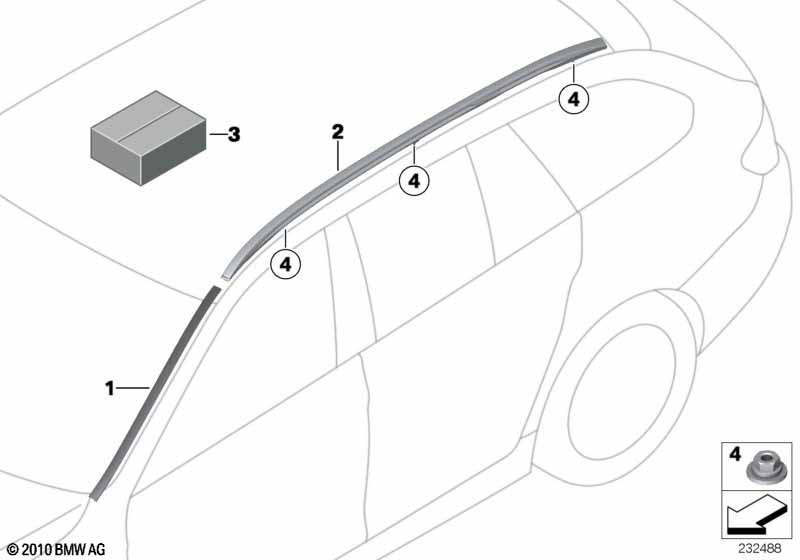

This Retrofit, roof rail technical drawing provides a detailed breakdown of the assembly for the 5 Series F11 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Retrofit optionally in "alu-satiniert" or "schwarz" For installation see ISTA repair instruction For vehicles with Roof railing and Roof rail, aluminum, satin finish and Indiv. roof rail high-gloss Shadow Line |
S386A=No S3ATA=No S3MCA=No |
||||||||
| 01 | Roof molding prime-coated left | 1 | 07/2013 | 51137276305 | ENDED | Shop at ECS Tuning | ||||
| 01 | Roof molding prime-coated left | 1 | 51137362463 | Shop at ECS Tuning | ||||||
| 01 | Roof molding prime-coated right | 1 | 07/2013 | 51137276306 | ENDED | Shop at ECS Tuning | ||||
| 01 | Roof molding prime-coated right | 1 | 51137362464 | Shop at ECS Tuning | ||||||
| 02 | Roof railing, left | SCHWARZ | 1 | 51137210093 | Shop at ECS Tuning | |||||
| 02 | Roof railing, right | SCHWARZ | 1 | 51137210094 | Shop at ECS Tuning | |||||
| 02 | Roof railing, left | ALU MATT | 1 | 51137234901 | Shop at ECS Tuning | |||||
| 02 | Roof railing, right | ALU MATT | 1 | 51137234902 | Shop at ECS Tuning | |||||
| 02 | Roof railing, left | GLANZSCHWARZ | 1 | 51138049127 | Shop at ECS Tuning | |||||
| 02 | Roof railing, right | GLANZSCHWARZ | 1 | 51138049128 | Shop at ECS Tuning | |||||
| 03 | Rep. kit for roof rail, left | 1 | 51137269369 | Shop at ECS Tuning | ||||||
| 03 | Rep. kit for roof rail, right | 1 | 51137269370 | Shop at ECS Tuning | ||||||
| 04 | Hex nut | 6 | 07147195759 | $1.16 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
