Retrofit kit, roof railing for BMW 5 Series E39 525d (2003)

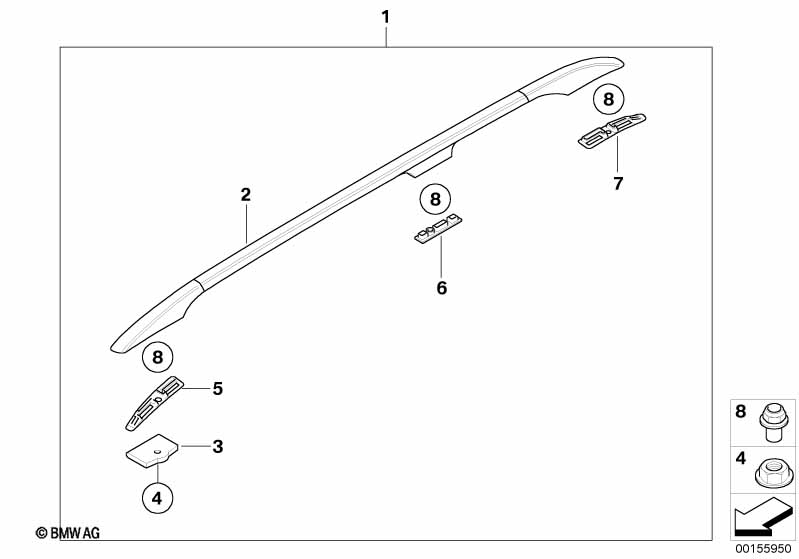

This Retrofit kit, roof railing technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Retrofit kit, roof railing | 1 | 51139405944 | $418.50 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Molding left | CODE - UNI/MET. | 1 | 51139070539 | ENDED | Shop at ECS Tuning | ||||
| -- | Molding right | CODE - UNI/MET. | 1 | 51139070540 | ENDED | Shop at ECS Tuning | ||||
| 02 | Roof railing, left | SCHWARZ MATT | 1 | 51138193027 | $252.22 | Shop at ECS Tuning | ||||
| 02 | Roof railing, right | SCHWARZ MATT | 1 | 51138193028 | $252.22 | Shop at ECS Tuning | ||||
| 03 | Washer-gasket | 6 | 51138193213 | $1.88 | ENDED | Shop at ECS Tuning | ||||
| 04 | Hex nut | M8-Z2 | 6 | 51138133382 | $1.03 | ENDED | Shop at ECS Tuning | |||
| 05 | Base, roof railing, front, left | 1 | 51137126501 | $4.38 | ENDED | Shop at ECS Tuning | ||||
| 05 | Base, roof railing, front, right | 1 | 51137126502 | $4.38 | Shop at ECS Tuning | |||||
| 06 | Base, roof railing, center, left | 1 | 51137126503 | $7.56 | ENDED | Shop at ECS Tuning | ||||
| 06 | Base, roof railing, center, right | 1 | 51137126504 | $7.56 | Shop at ECS Tuning | |||||
| 07 | Base, roof railing, rear, left | 1 | 51137126505 | $4.38 | ENDED | Shop at ECS Tuning | ||||
| 07 | Base, roof railing, rear, right | 1 | 51137126506 | $4.38 | Shop at ECS Tuning | |||||
| 08 | Threaded plug | M10/M6 | 8 | 41318199941 | $3.48 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
