Retrofit kit, roof railing for BMW 5 Series E34 518i (1994)

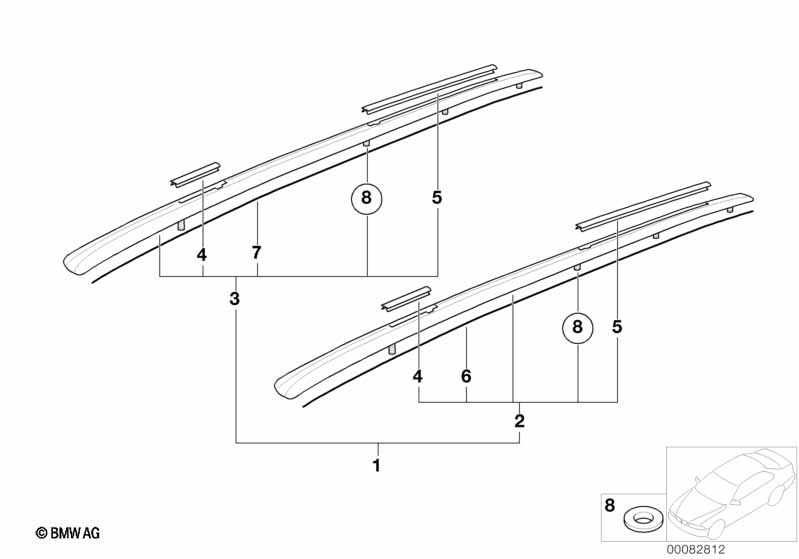

This Retrofit kit, roof railing technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 518i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Retrofit kit, roof railing | 1 | 82129401646 | $920.00 | Shop at ECS Tuning | |||||
| 02 | Roof railing, left | 1 | 51138120337 | $678.11 | ENDED | Shop at ECS Tuning | ||||
| 03 | Roof railing, right | 1 | 51138120338 | $678.11 | ENDED | Shop at ECS Tuning | ||||
| 04 | Cover strip, front | 2 | 51138149169 | $4.45 | Shop at ECS Tuning | |||||
| 05 | Cover strip, rear | 2 | 51138149170 | $4.67 | Shop at ECS Tuning | |||||
| 06 | Seal,bottom left | 1 | 51138149995 | $95.00 | Shop at ECS Tuning | |||||
| 07 | Seal,bottom right | 1 | 51138149996 | $95.00 | ENDED | Shop at ECS Tuning | ||||
| 08 | Washer | 8 | 51138133229 | $0.50 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 518i Retrofit kit, roof railing?
- This technical diagram illustrates the Retrofit kit, roof railing within the Retrofitting / conversion / accessories group for the 5 Series E34 518i produced during 1994. It provides a detailed exploded view of the components, identifying key parts such as the Retrofit kit, roof railing (Part #82129401646).
- Which models use the hardware listed in this Retrofit kit, roof railing?
- The hardware and components featured in the Retrofit kit, roof railing are specific to the 5 Series E34 518i produced during 1994. These technical specifications ensure that parts like the Retrofit kit, roof railing (82129401646) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Retrofit kit, roof railing assembly?
- Each item in the Retrofit kit, roof railing corresponds to the numbered list below the illustration. For the 5 Series E34 518i, you can identify the Retrofit kit, roof railing by locating its position on the schematic, which then links to the official BMW part number 82129401646 for the Retrofitting / conversion / accessories section.
