BMW Performance air-induction system for BMW 3 Series E91 330i (2008)

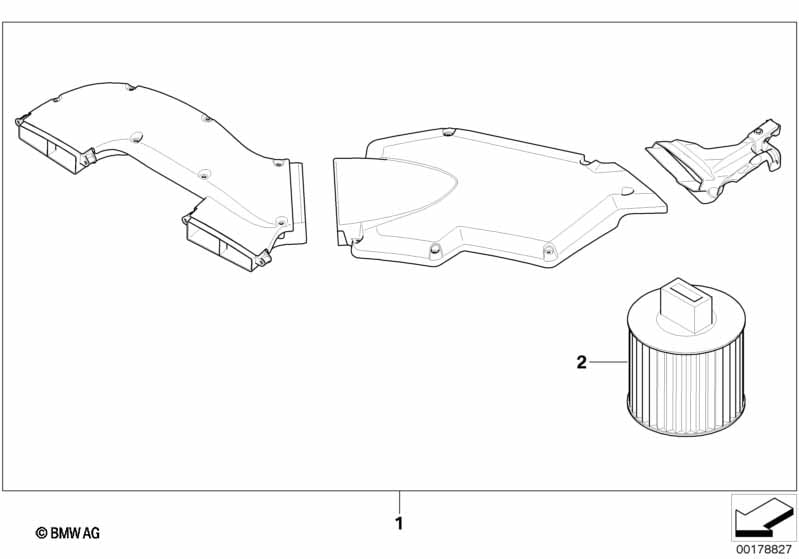

This BMW Performance air-induction system technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 330i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Air filter element | BMW PERFORMANCE | 1 | 13710445636 | +core | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E91 330i BMW Performance air-induction system?
- This technical diagram illustrates the BMW Performance air-induction system within the Retrofitting / conversion / accessories group for the 3 Series E91 330i produced during 2008. It provides a detailed exploded view of the components, identifying key parts such as the Air filter element (Part #13710445636).
- Which models use the hardware listed in this BMW Performance air-induction system?
- The hardware and components featured in the BMW Performance air-induction system are specific to the 3 Series E91 330i produced during 2008. These technical specifications ensure that parts like the Air filter element (13710445636) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the BMW Performance air-induction system assembly?
- Each item in the BMW Performance air-induction system corresponds to the numbered list below the illustration. For the 3 Series E91 330i, you can identify the Air filter element by locating its position on the schematic, which then links to the official BMW part number 13710445636 for the Retrofitting / conversion / accessories section.
