Tailpipe tip for BMW 3 Series E93 320i (2010)

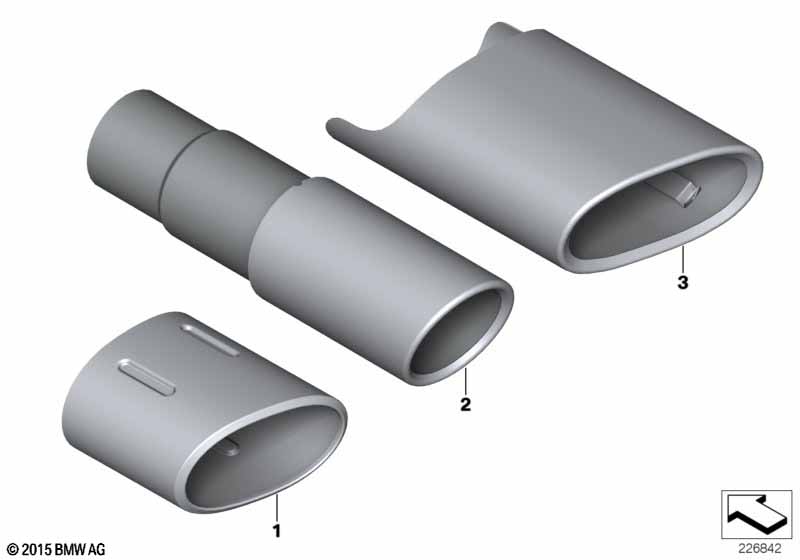

This Tailpipe tip technical drawing provides a detailed breakdown of the assembly for the 3 Series E93 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Tailpipe tip, chrome | SCHWARZ-CHROM | 1 | 18302160452 | ENDED | Shop at ECS Tuning | ||||
| 03 | Tailpipe tip, black chrome | 1 | 18307618464 | Shop at ECS Tuning | ||||||
| 03 | Tailpipe end piece, alu-look | 1 | 18302163710 | ENDED | Shop at ECS Tuning | |||||
| 03 | Tailpipe end piece, alu-look | 1 | 18307618463 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E93 320i Tailpipe tip?
- This technical diagram illustrates the Tailpipe tip within the Retrofitting / conversion / accessories group for the 3 Series E93 320i produced during 2010. It provides a detailed exploded view of the components, identifying key parts such as the Tailpipe tip, chrome (Part #18302160452).
- Which models use the hardware listed in this Tailpipe tip?
- The hardware and components featured in the Tailpipe tip are specific to the 3 Series E93 320i produced during 2010. These technical specifications ensure that parts like the Tailpipe tip, chrome (18302160452) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Tailpipe tip assembly?
- Each item in the Tailpipe tip corresponds to the numbered list below the illustration. For the 3 Series E93 320i, you can identify the Tailpipe tip, chrome by locating its position on the schematic, which then links to the official BMW part number 18302160452 for the Retrofitting / conversion / accessories section.
