Boot partitioning grate for BMW 3 Series E91 LCI 325d (2012)

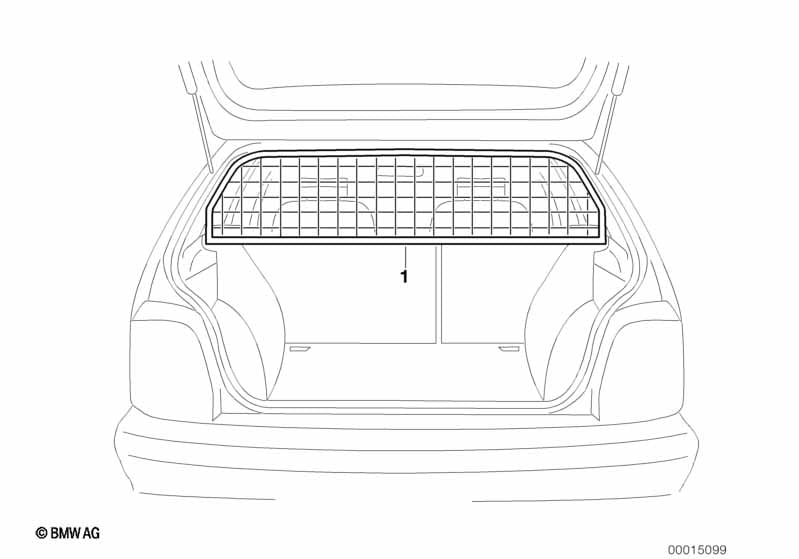

This Boot partitioning grate technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 LCI 325d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Dividing grille | E91 | 1 | 51470411690 | $516.00 | ENDED, +core | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E91 LCI 325d Boot partitioning grate?
- This technical diagram illustrates the Boot partitioning grate within the Retrofitting / conversion / accessories group for the 3 Series E91 LCI 325d produced during 2012. It provides a detailed exploded view of the components, identifying key parts such as the Dividing grille (Part #51470411690).
- Which models use the hardware listed in this Boot partitioning grate?
- The hardware and components featured in the Boot partitioning grate are specific to the 3 Series E91 LCI 325d produced during 2012. These technical specifications ensure that parts like the Dividing grille (51470411690) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Boot partitioning grate assembly?
- Each item in the Boot partitioning grate corresponds to the numbered list below the illustration. For the 3 Series E91 LCI 325d, you can identify the Dividing grille by locating its position on the schematic, which then links to the official BMW part number 51470411690 for the Retrofitting / conversion / accessories section.
