Luggage compartment pan for BMW 5 Series E39 530i (2000)

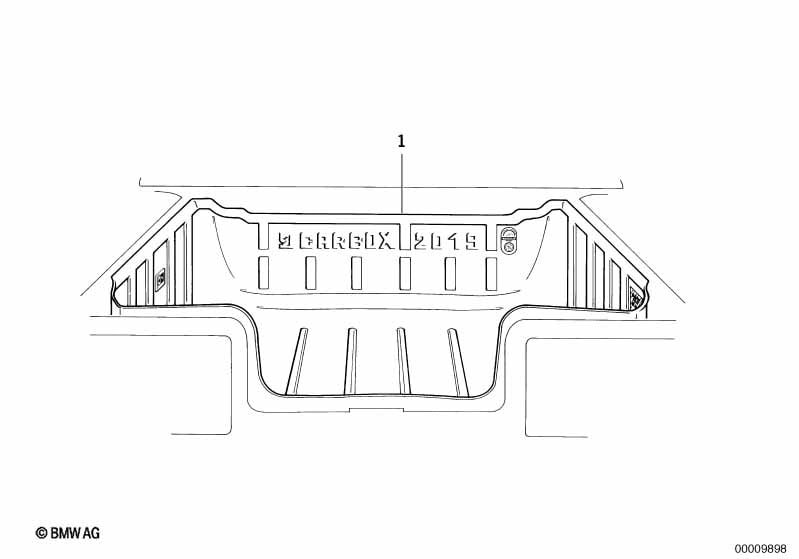

This Luggage compartment pan technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Not suitable for telephone, CD changer, navigation system |
||||||||||
| 01 | Luggage compartment pan | 1 | 82269405374 | $312.48 | ENDED, +core | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
