Accessories and Retrofittings for BMW 3 Series F31 328i (2012)

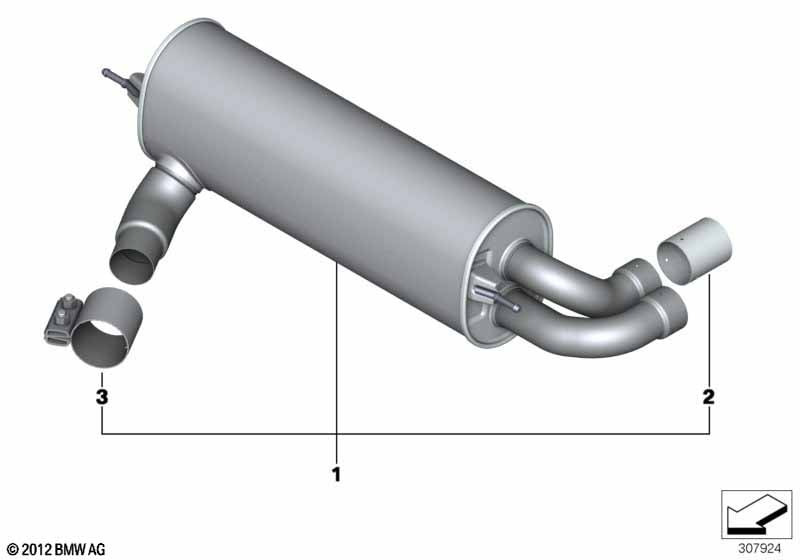

This Accessories and Retrofittings technical drawing provides a detailed breakdown of the assembly for the 3 Series F31 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | M Performance muffler | F30N20 | 1 | 18302293771 | Shop at ECS Tuning | |||||
| 02 | M Performance tailpipe tip, chrome | M PERFORMANCE | 2 | 18302336864 | Shop at ECS Tuning | |||||
| Only suitable for M Performance silencer system |
||||||||||
| 03 | Clamping bush | D=75 X 90MM | 1 | 18307560781 | $152.42 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series F31 328i Accessories and Retrofittings?
- This technical diagram illustrates the Accessories and Retrofittings within the Retrofitting / conversion / accessories group for the 3 Series F31 328i produced during 2012. It provides a detailed exploded view of the components, identifying key parts such as the M Performance muffler (Part #18302293771).
- Which models use the hardware listed in this Accessories and Retrofittings?
- The hardware and components featured in the Accessories and Retrofittings are specific to the 3 Series F31 328i produced during 2012. These technical specifications ensure that parts like the M Performance muffler (18302293771) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Accessories and Retrofittings assembly?
- Each item in the Accessories and Retrofittings corresponds to the numbered list below the illustration. For the 3 Series F31 328i, you can identify the M Performance muffler by locating its position on the schematic, which then links to the official BMW part number 18302293771 for the Retrofitting / conversion / accessories section.
