Alum. interior strips ground lengthwise for BMW 3 Series E90 LCI 325xi (2011)

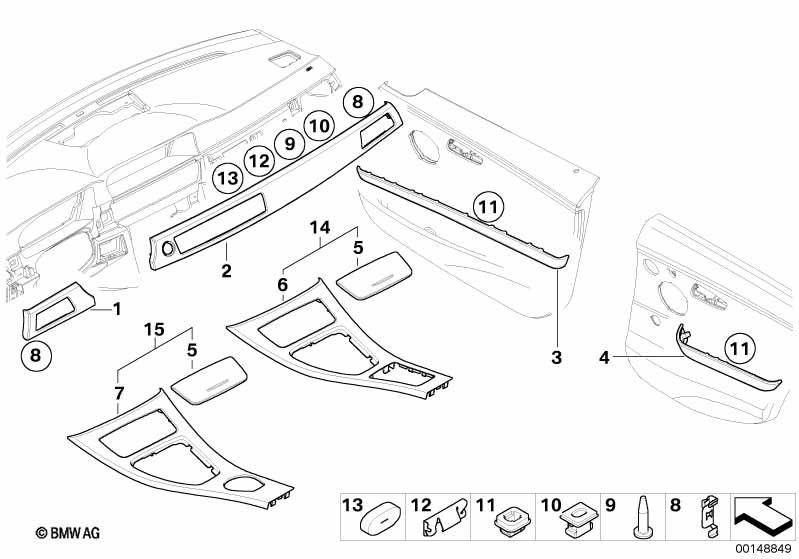

This Alum. interior strips ground lengthwise technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 325xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover, dashboard, aluminium, left | ALU FEINSCHLIFF | 1 | 09/2008 | 51459147390 | $77.71 | Shop at ECS Tuning | |||
| 02 | Cover, dashboard, aluminium, right | ALU FEINSCHLIFF | 1 | 09/2008 | 51459147391 | $165.30 | Shop at ECS Tuning | |||
| 03 | Decorative strip, door front left | ALU FEINSCHLIFF | 1 | 09/2008 | 51419171789 | $76.22 | Shop at ECS Tuning | |||
| 03 | Decorative strip, door front right | ALU FEINSCHLIFF | 1 | 09/2008 | 51419171790 | $76.22 | Shop at ECS Tuning | |||
| 04 | Decorative strip, door rear left | ALU FEINSCHLIFF | 1 | 09/2008 | 51429171793 | $54.44 | Shop at ECS Tuning | |||
| 04 | Decorative strip, door rear right | ALU FEINSCHLIFF | 1 | 09/2008 | 51429171794 | $54.44 | Shop at ECS Tuning | |||
| 05 | Cover | ALU/FEINSCHLIFF | 1 | 09/2008 | 51169145151 | $76.17 | Shop at ECS Tuning | |||
| 06 | Cover center console | ALU/FEINSCHLIFF | 1 | 09/2008 | 51169145141 | $284.47 | Shop at ECS Tuning | |||
| 07 | Cover center console | ALU/FEINSCHLIFF | 1 | 09/2008 | 51169145143 | $284.47 | Shop at ECS Tuning | |||
| 08 | Clip, outer decor strip | 2 | 51457146752 | $0.63 | Shop at ECS Tuning | |||||
| 09 | Pin | D=6X25 | 7 | 51458266808 | $1.02 | Shop at ECS Tuning | ||||
| 10 | Plug-in retainer | 10 | 51457152442 | $0.73 | Shop at ECS Tuning | |||||
| 11 | Plug-in retainer | 18 | 07149158194 | $0.79 | Shop at ECS Tuning | |||||
| 12 | Clamp | 1 | 51457146751 | $0.85 | Shop at ECS Tuning | |||||
| 13 | Gasket, decor panel | 4 | 51166952674 | $0.73 | Shop at ECS Tuning |
