Illuminated door sill strip retrofit kit for BMW 1 Series E87 120d (2007)

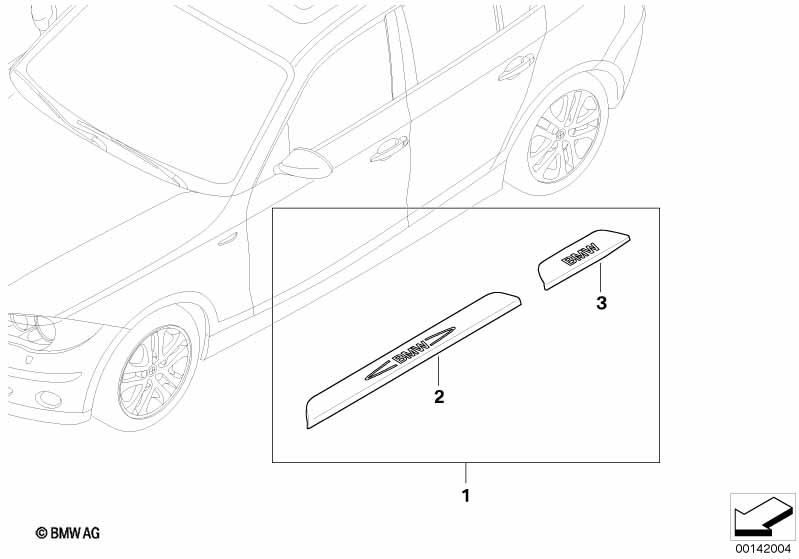

This Illuminated door sill strip retrofit kit technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 120d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important notice: The installation instructions are not included in the retrofit kit. Print out the latest update of the instructions from the Aftersales Assistance Portal (ASAP) and hand them over to the customer. |
|||||||||
| 01 | Illuminated door sill strip retrofit kit | 1 | 51470391657 | ENDED, +core | Shop at ECS Tuning | |||||
| 02 | Illuminated door sill strip front left | 1 | 51470396167 | ENDED | Shop at ECS Tuning | |||||
| 02 | Illuminated door sill strip front right | 1 | 51470396168 | ENDED | Shop at ECS Tuning | |||||
| 03 | Illuminated door sill strip rear left | 1 | 51470396169 | ENDED | Shop at ECS Tuning | |||||
| 03 | Illuminated door sill strip rear right | 1 | 51470396170 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series E87 120d Illuminated door sill strip retrofit kit?
- This technical diagram illustrates the Illuminated door sill strip retrofit kit within the Retrofitting / conversion / accessories group for the 1 Series E87 120d produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the Illuminated door sill strip retrofit kit (Part #51470391657).
- Which models use the hardware listed in this Illuminated door sill strip retrofit kit?
- The hardware and components featured in the Illuminated door sill strip retrofit kit are specific to the 1 Series E87 120d produced during 2007. These technical specifications ensure that parts like the Illuminated door sill strip retrofit kit (51470391657) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Illuminated door sill strip retrofit kit assembly?
- Each item in the Illuminated door sill strip retrofit kit corresponds to the numbered list below the illustration. For the 1 Series E87 120d, you can identify the Illuminated door sill strip retrofit kit by locating its position on the schematic, which then links to the official BMW part number 51470391657 for the Retrofitting / conversion / accessories section.
