Illuminated door sill strip retrofit kit for BMW 3 Series E90 325xi (2008)

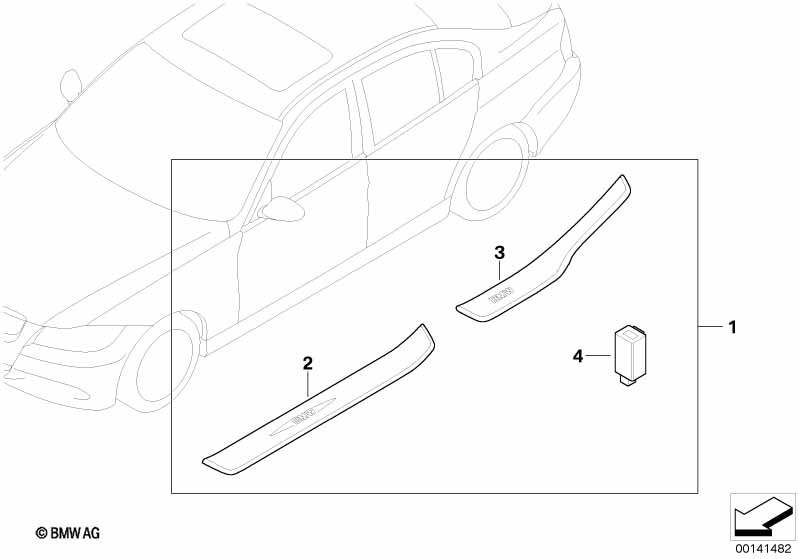

This Illuminated door sill strip retrofit kit technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 325xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important notice: The installation instructions are not included in the retrofit kit. Print out the latest update of the instructions from the Aftersales Assistance Portal (ASAP) and hand them over to the customer. |
|||||||||
| 01 | Retrofit kit sill trim | 1 | 51470429897 | $838.00 | ENDED | Shop at ECS Tuning | ||||
| 02 | Illuminated door sill strip front left | 1 | 51470397796 | $224.95 | ENDED | Shop at ECS Tuning | ||||
| 02 | Illuminated door sill strip front right | 1 | 51470397797 | $224.95 | ENDED | Shop at ECS Tuning | ||||
| 03 | Illuminated door sill strip rear left | 1 | 51470397798 | $183.95 | ENDED | Shop at ECS Tuning | ||||
| 03 | Illuminated door sill strip rear right | 1 | 51470397799 | $183.95 | ENDED | Shop at ECS Tuning | ||||
| 04 | Inverter | 1 | 06/2008 | 51470396725 | $74.00 | ENDED | Shop at ECS Tuning | |||
| 04 | Inverter | 1 | 51472150905 | $74.00 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
