Floor mats city for BMW 1 Series E82 120d (2013)

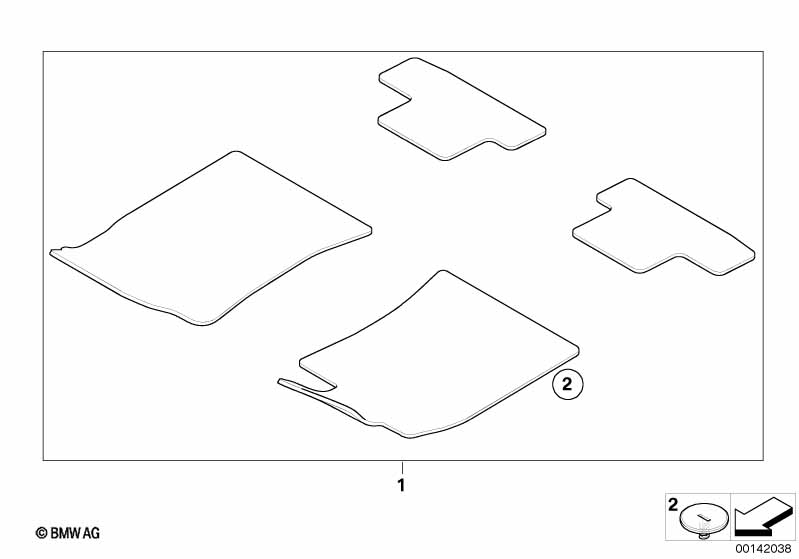

This Floor mats city technical drawing provides a detailed breakdown of the assembly for the 1 Series E82 120d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with National version China |
L8AAA=No |
||||||||
| 01 | Floor mats city | LHD ANTHRAZIT | 1 | 51470439155 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Hook&loop element with screw thread | D=62MM | 4 | 51479171368 | $8.03 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
