Floor mats Commercial for BMW 3 Series E90 LCI 320d (2011)

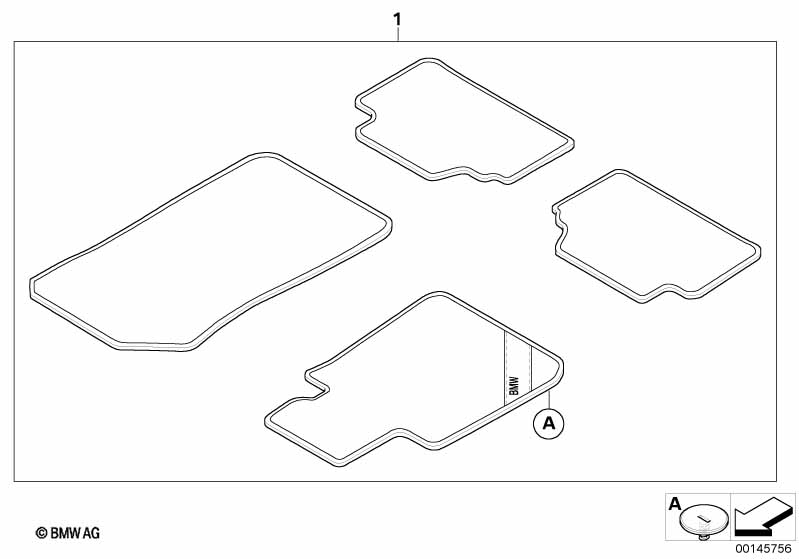

This Floor mats Commercial technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | parallel to the order using the system, send a fax with your dealer logo and customer order number to Petex +49-8721-969740 For vehicles with National version China |
L8AAA=No |
||||||||
| On initial order | ||||||||||
| 01 | Set of floor mats Commercial RHD | ANTHRAZIT | 1 | 51470397015 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Price extra furnishing costs | 1 | 51470300697 | $89.84 | ENDED | Shop at ECS Tuning | ||||
| On follow-on order | ||||||||||
| 01 | Set of floor mats Commercial RHD | ANTHRAZIT | 1 | 51470397015 | ENDED, +core | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
