Rubber mat for BMW 6 Series E64 650i (2007)

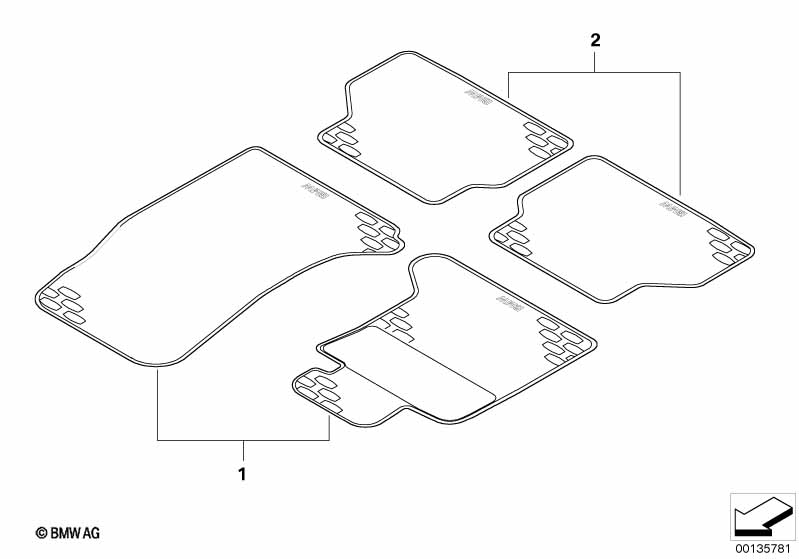

This Rubber mat technical drawing provides a detailed breakdown of the assembly for the 6 Series E64 650i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with National version China |
L8AAA=No |
||||||||
| 01 | Kit rubber floor mats front | SCHWARZ | 1 | 11/2004 | 02/2008 | 51470399405 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Kit rubber floor mats front | SCHWARZ RHD | 1 | 11/2004 | 51470429145 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Kit rubber floor mats rear | SCHWARZ | 1 | 51470429147 | $40.75 | ENDED, +core | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E64 650i Rubber mat?
- This technical diagram illustrates the Rubber mat within the Retrofitting / conversion / accessories group for the 6 Series E64 650i produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the Kit rubber floor mats front (Part #51470399405).
- Which models use the hardware listed in this Rubber mat?
- The hardware and components featured in the Rubber mat are specific to the 6 Series E64 650i produced during 2007. These technical specifications ensure that parts like the Kit rubber floor mats front (51470399405) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rubber mat assembly?
- Each item in the Rubber mat corresponds to the numbered list below the illustration. For the 6 Series E64 650i, you can identify the Kit rubber floor mats front by locating its position on the schematic, which then links to the official BMW part number 51470399405 for the Retrofitting / conversion / accessories section.
