Rubber mat for BMW 3 Series E30 320i (1991)

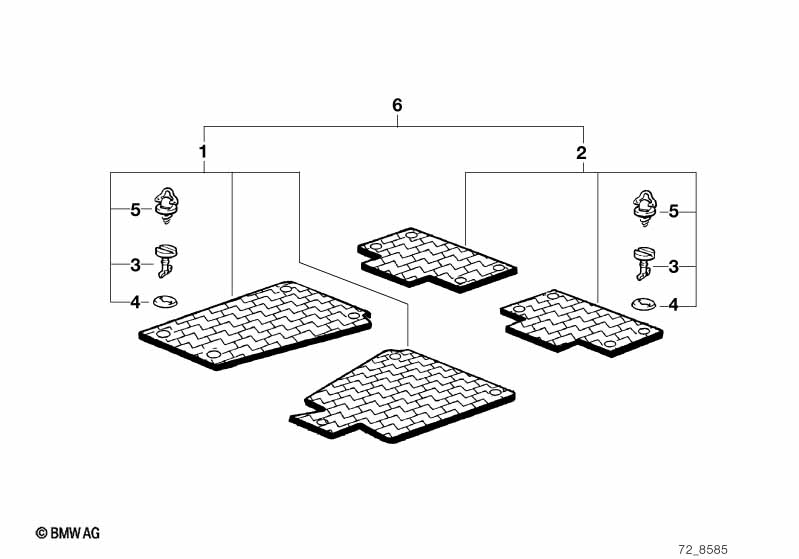

This Rubber mat technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Set rubber mats front | GRAU | 1 | 51471943332 | $58.79 | ENDED | Shop at ECS Tuning | |||
| 05 | Lock | SCHWARZ | X | 51471919177 | $1.50 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 320i Rubber mat?
- This technical diagram illustrates the Rubber mat within the Retrofitting / conversion / accessories group for the 3 Series E30 320i produced during 1991. It provides a detailed exploded view of the components, identifying key parts such as the Set rubber mats front (Part #51471943332).
- Which models use the hardware listed in this Rubber mat?
- The hardware and components featured in the Rubber mat are specific to the 3 Series E30 320i produced during 1991. These technical specifications ensure that parts like the Set rubber mats front (51471943332) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rubber mat assembly?
- Each item in the Rubber mat corresponds to the numbered list below the illustration. For the 3 Series E30 320i, you can identify the Set rubber mats front by locating its position on the schematic, which then links to the official BMW part number 51471943332 for the Retrofitting / conversion / accessories section.
