Rubber mat for BMW 3 Series E90 330d (2008)

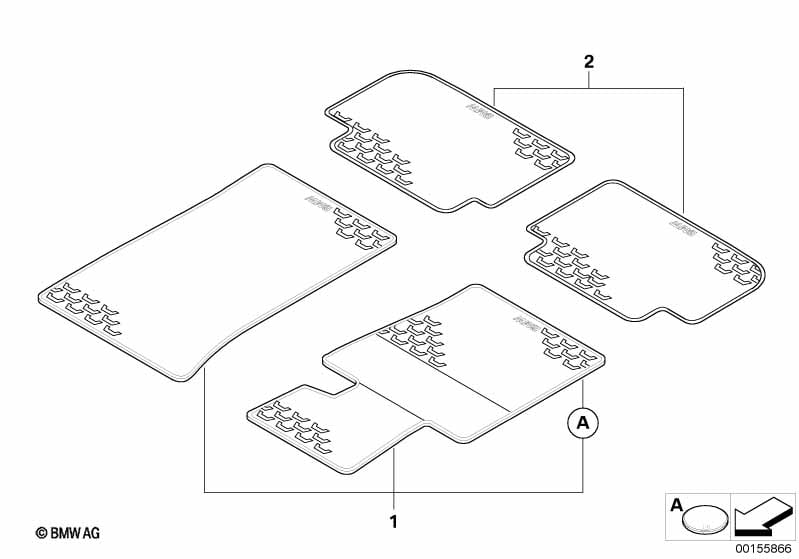

This Rubber mat technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with National version China |
L8AAA=No |
||||||||
| 01 | Kit rubber floor mats front | RHD ANTHRAZIT | 1 | 10/2012 | 51470427556 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Floor mats, all-weather, front | RHD ANTHR. | 1 | 51472311059 | Shop at ECS Tuning | |||||
| 02 | Kit rubber floor mats rear | ANTHRAZIT | 1 | 05/2012 | 51470427558 | $25.50 | ENDED | Shop at ECS Tuning | ||
| 02 | Floor mats, all-weather, rear | ANTHR. E9X | 1 | 51472336599 | Shop at ECS Tuning | |||||
| 02 | Kit rubber floor mats rear | GRAU | 1 | 51470427559 | $25.50 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Kit rubber floor mats rear | SAVANNABEIGE | 1 | 51470427560 | $25.50 | ENDED, +core | Shop at ECS Tuning | |||
| Spare part | ||||||||||
| 03 | Hook&loop element with screw thread | D=62MM | 2 | 51479171368 | $8.03 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
