Floor Mat Set for BMW 5 Series E28 524td (1984)

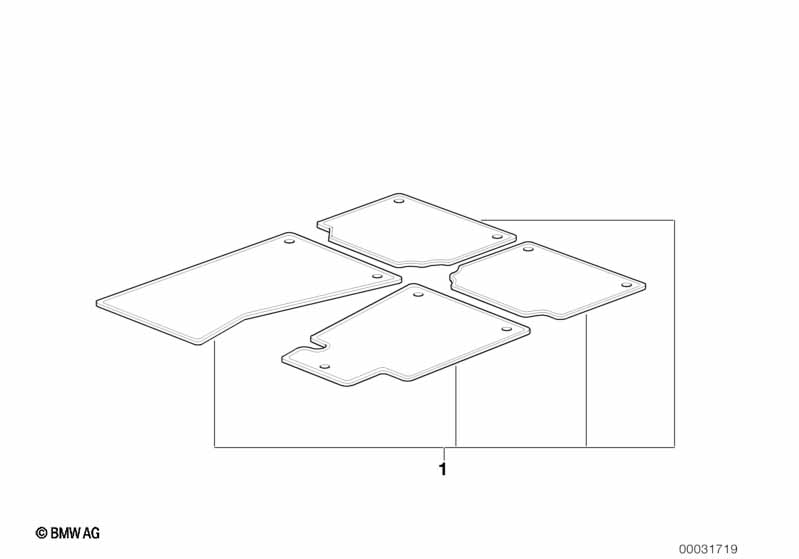

This Floor Mat Set technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 524td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1984.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Mat | BLACK | 1 | 82111466900 | $130.00 | ENDED | Shop at ECS Tuning | |||
| 01 | Mat | PERL BEIGE | 1 | 82111466904 | $130.00 | ENDED | Shop at ECS Tuning | |||
| 01 | Mat | ANTHRACITE | 1 | 82111466905 | $130.00 | ENDED | Shop at ECS Tuning | |||
| 01 | Mat | NATURAL | 1 | 82111466924 | $130.00 | ENDED | Shop at ECS Tuning | |||
| 01 | Mat | INDIGO | 1 | 82111467672 | $130.00 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 524td Floor Mat Set?
- This technical diagram illustrates the Floor Mat Set within the Retrofitting / conversion / accessories group for the 5 Series E28 524td produced during 1984. It provides a detailed exploded view of the components, identifying key parts such as the Mat (Part #82111466900).
- Which models use the hardware listed in this Floor Mat Set?
- The hardware and components featured in the Floor Mat Set are specific to the 5 Series E28 524td produced during 1984. These technical specifications ensure that parts like the Mat (82111466900) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Floor Mat Set assembly?
- Each item in the Floor Mat Set corresponds to the numbered list below the illustration. For the 5 Series E28 524td, you can identify the Mat by locating its position on the schematic, which then links to the official BMW part number 82111466900 for the Retrofitting / conversion / accessories section.
