Floor Mat Set for BMW 3 Series E46 325i (2005)
This Floor Mat Set technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| only for 4-Wheel Drive | ||||||||||

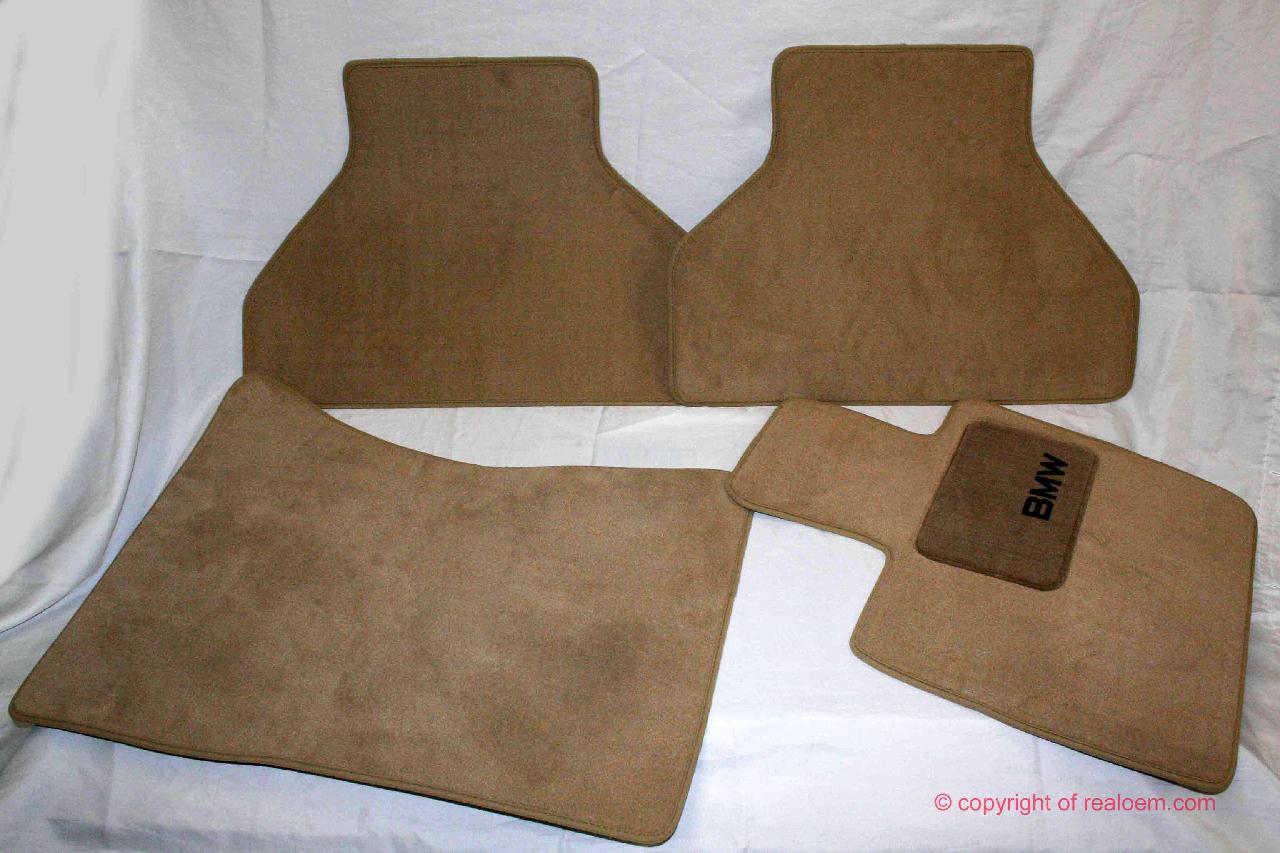

| 01 | Floor mats | E-46 IX SAND | 1 | 82110026589 | $130.00 | ENDED | Shop at ECS Tuning | |||
| 01 | Floor mats | E-46 IX GREY | 1 | 82110026590 | $130.00 | ENDED | Shop at ECS Tuning | |||

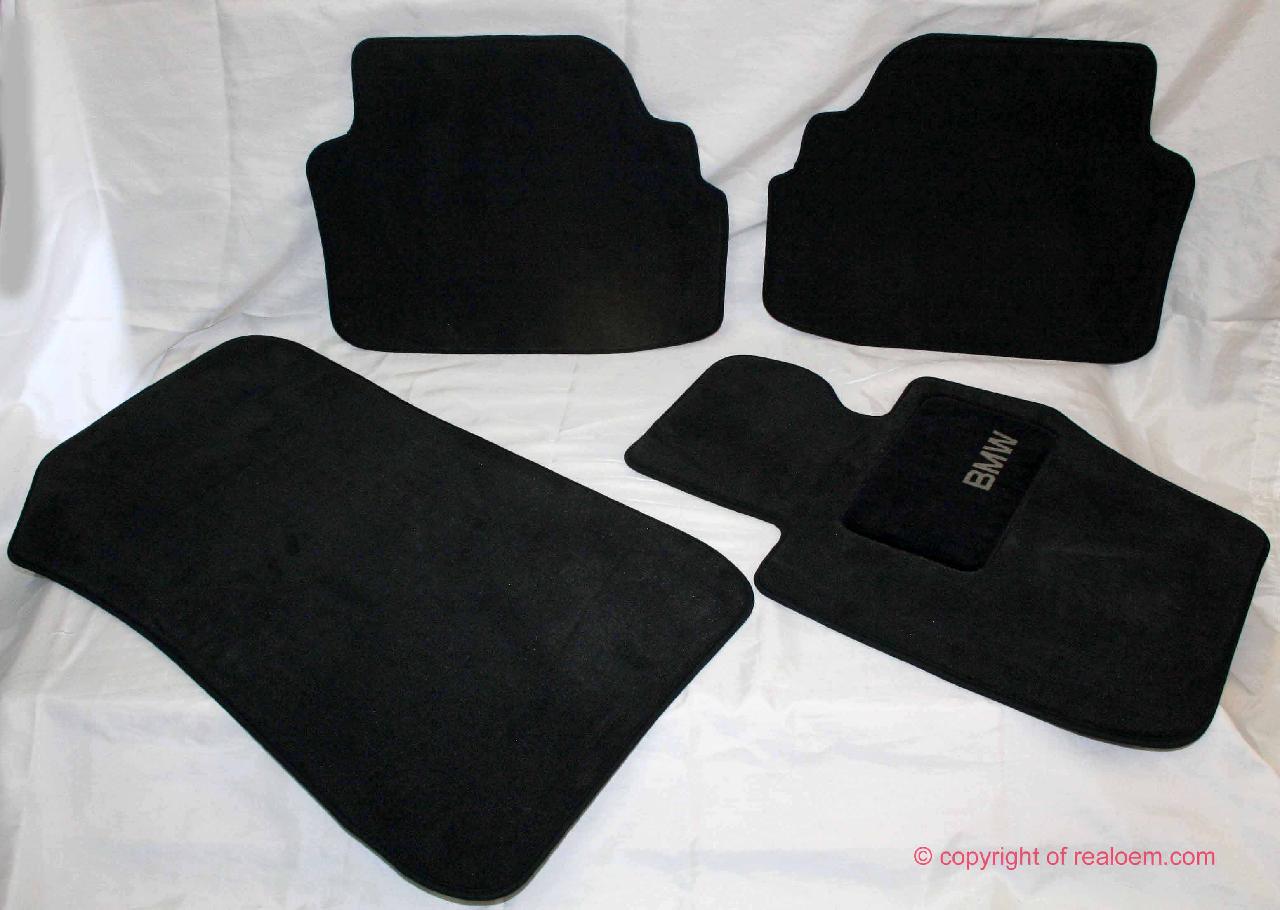

| 01 | Floor mats | E-46 IX ANTH | 1 | 82110026591 | $130.00 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
