Retrofit equipm. armrest center console for BMW 1 Series E82 120d (2013)
This Retrofit equipm. armrest center console technical drawing provides a detailed breakdown of the assembly for the 1 Series E82 120d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with alaska-grey |
AL=Yes |
|||||||||
| 01 | Center arm rest | ALASKAGRAU | 1 | 51169110502 | $335.51 | Shop at ECS Tuning | ||||
| For vehicles with beige or lemon/beige |
A5=Yes F6=Yes |
|||||||||
| 01 | Center arm rest | BEIGE | 1 | 51169110503 | $335.51 | Shop at ECS Tuning | ||||
| For vehicles with anthracite or lemon or terra or oyster or korall-red or Monaco blue or magma-braun or orange/black or cranberry-red or perl-grau/Kontrast blau or black / blue or schwarz/Kontrast weiss or Black |
AT=Yes B7=Yes B8=Yes CX=Yes D1=Yes D9=Yes DR=Yes F5=Yes F8=Yes NH=Yes NL=Yes NM=Yes SW=Yes |
|||||||||
| 01 | Center arm rest | SCHWARZ | 1 | 51169110501 | $335.51 | Shop at ECS Tuning | ||||
| For vehicles with Preparation, mobile phone, Business or Preparation f mobile phone cpl. USA/CDN or Preparation f tel.installation universal or Preparation f mobile phone w Bluetooth and alaska-grey |
S633A=Yes S639A=Yes S640A=Yes S644A=Yes AL=Yes |
|||||||||
| 02 | Center arm rest f telephone | ALASKAGRAU | 1 | 51169110489 | $335.51 | Shop at ECS Tuning | ||||
| For vehicles with Preparation, mobile phone, Business or Preparation f mobile phone cpl. USA/CDN or Preparation f tel.installation universal or Preparation f mobile phone w Bluetooth and beige or lemon/beige |
S633A=Yes S639A=Yes S640A=Yes S644A=Yes A5=Yes F6=Yes |
|||||||||
| 02 | Center arm rest f telephone | BEIGE | 1 | 51169110490 | $335.51 | Shop at ECS Tuning | ||||
| For vehicles with Preparation, mobile phone, Business or Preparation f mobile phone cpl. USA/CDN or Preparation f tel.installation universal or Preparation f mobile phone w Bluetooth and anthracite or beige or lemon or terra or korall-red or Monaco blue or orange/black or cranberry-red or Black |
S633A=Yes S639A=Yes S640A=Yes S644A=Yes AT=Yes B4=Yes B7=Yes B8=Yes D1=Yes D9=Yes F5=Yes F8=Yes SW=Yes |
|||||||||
| 02 | Center arm rest f telephone | SCHWARZ | 1 | 51169110488 | $335.51 | Shop at ECS Tuning | ||||
| 03 | Center armrest tray | 1 | 51167140617 | $15.97 | Shop at ECS Tuning | |||||
| only applies to CENTER ARM REST F TELEPHONE |
||||||||||
| 04 | Car telephone eject-box | 1 | 84109160935 | $147.93 | Shop at ECS Tuning | |||||
| 05 | Slot cover Eject box | 1 | 51167140619 | $4.61 | Shop at ECS Tuning | |||||
| 06 | Armrest bracket | 1 | 51169147054 | $8.00 | Shop at ECS Tuning | |||||
| 07 | Lift sleeve for center armrest | 1 | 51167133883 | $2.89 | Shop at ECS Tuning | |||||
| 08 | Self-locking hex nut | M6 | 3 | 64509123157 | $0.70 | Shop at ECS Tuning | ||||
| 09 | Hex bolt with washer | M6X12-U1-8.8 | 1 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| 10 | Hex bolt with washer | M6X16-U1-ZNS3 | 1 | 07119903844 | $0.38 | ENDED | Shop at ECS Tuning | |||
| 10 | Hex bolt with washer | M6X16-U1-8.8 | 1 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 11 | C-clip nut | M6-ZNS3 | 1 | 51127070202 | $1.00 | Shop at ECS Tuning | ||||
| For vehicles with alaska-grey |
AL=Yes |
|||||||||
| 12 | Cover, center armrest, rear | ALASKAGRAU | 1 | 51169110485 | $14.00 | Shop at ECS Tuning | ||||
| For vehicles with beige or lemon/beige |
A5=Yes F6=Yes |
|||||||||
| 12 | Cover, center armrest, rear | BEIGE | 1 | 51169110486 | $14.00 | Shop at ECS Tuning | ||||
| For vehicles with anthracite or lemon or terra or Monaco blue or orange/black or cranberry-red or Black |
AT=Yes B7=Yes B8=Yes D9=Yes F5=Yes F8=Yes SW=Yes |
|||||||||
| 12 | Cover, center armrest, rear | SCHWARZ | 1 | 51169110484 | $14.00 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series E82 120d Retrofit equipm. armrest center console?

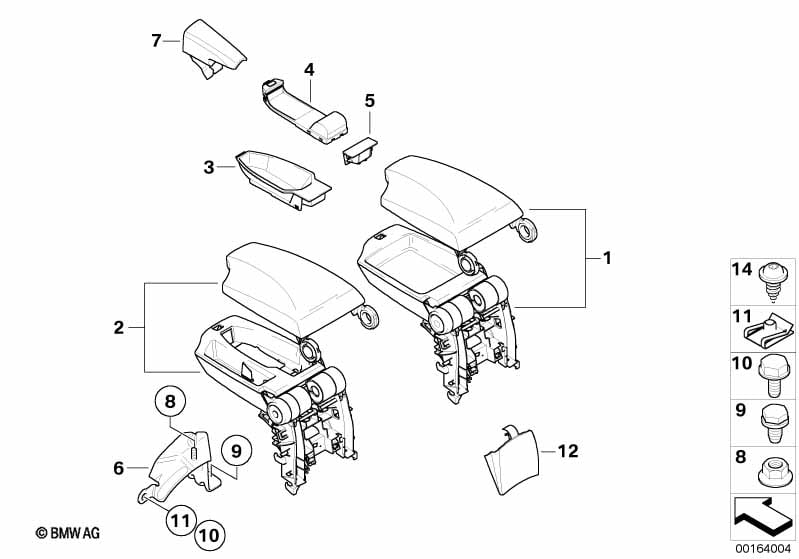

- This technical diagram illustrates the Retrofit equipm. armrest center console within the Retrofitting / conversion / accessories group for the 1 Series E82 120d produced during 2013. It provides a detailed exploded view of the components, identifying key parts such as the Center arm rest (Part #51169110502).
