Retrofit kit, armrest front for BMW 3 Series E46 318ti (2004)

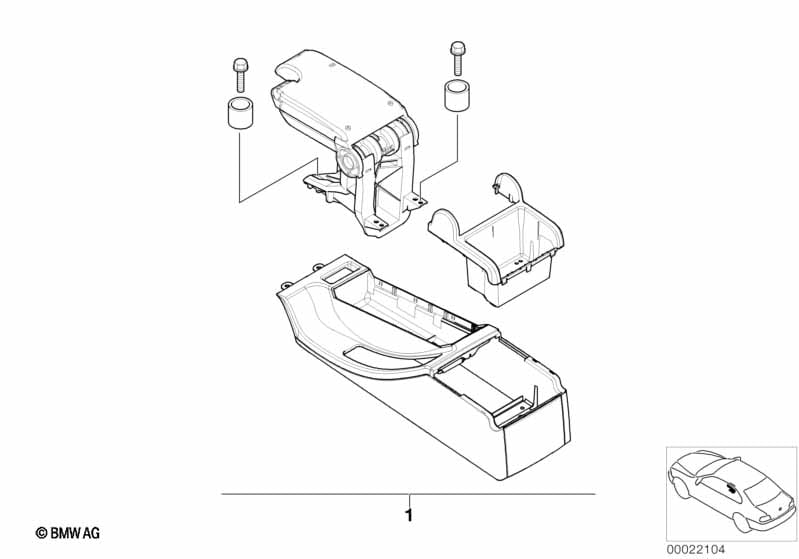

This Retrofit kit, armrest front technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Retrofit kit,armrest,imitat.leather frnt | SCHWARZ | 1 | 51169415375 | $496.95 | ENDED | Shop at ECS Tuning | |||
| 01 | Retrofit kit,armrest,imitat.leather frnt | HELLBEIGE | 1 | 51169415376 | ENDED | Shop at ECS Tuning | ||||
| 01 | Retrofit kit,armrest,imitat.leather frnt | GRAU | 1 | 51169415377 | ENDED | Shop at ECS Tuning | ||||
| leather Montana | ||||||||||
| 01 | Retrofit kit, armrest, leather, front | SCHWARZ | 1 | 51169415864 | ENDED | Shop at ECS Tuning | ||||
| 01 | Retrofit kit, armrest, leather, front | HELLBEIGE | 1 | 51169415865 | ENDED | Shop at ECS Tuning | ||||
| 01 | Retrofit kit, armrest, leather, front | GRAU | 1 | 51169415866 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Car phone with cordless receiver |
S630A=Yes |
|||||||||
| 01 | Retrofit kit,armrest,imitat.leather frnt | SCHWARZ | 1 | 51169415375 | $496.95 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 01 | Retrofit kit,armrest,imitat.leather frnt | HELLBEIGE | 1 | 51169415376 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Retrofit kit,armrest,imitat.leather frnt | GRAU | 1 | 51169415377 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Bracket f basis antenna | 1 | 84136912160 | $3.86 | Shop at ECS Tuning | |||||
| -- | Hex nut with plate | M5 | 2 | 63259128043 | $0.72 | Shop at ECS Tuning | ||||
| -- | C-clip nut | 1 | 07146988451 | $0.36 | Shop at ECS Tuning | |||||
| -- | Sheet metal screw | 4,2X13 | 1 | 07119904310 | $0.38 | Shop at ECS Tuning | ||||
| For vehicles with Car phone with cordless receiver leather Montana |
S630A=Yes |
|||||||||
| 01 | Retrofit kit, armrest, leather, front | SCHWARZ | 1 | 51169415864 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Retrofit kit, armrest, leather, front | HELLBEIGE | 1 | 51169415865 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Retrofit kit, armrest, leather, front | GRAU | 1 | 51169415866 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Bracket f basis antenna | 1 | 84136912160 | $3.86 | Shop at ECS Tuning | |||||
| -- | Hex nut with plate | M5 | 2 | 63259128043 | $0.72 | Shop at ECS Tuning | ||||
| -- | C-clip nut | 1 | 07146988451 | $0.36 | Shop at ECS Tuning | |||||
| -- | Sheet metal screw | 4,2X13 | 1 | 07119904310 | $0.38 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
