Retrofit, int.mouldings, matt chrome for BMW 3 Series E46 323Ci (2000)

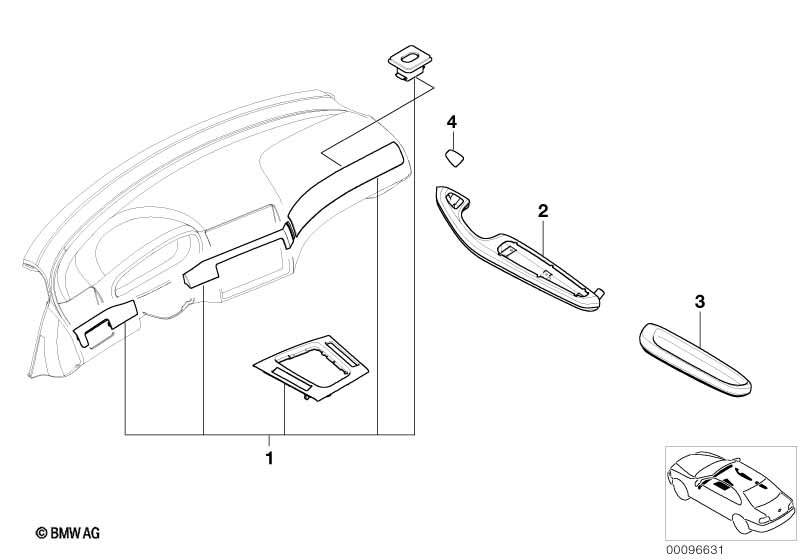

This Retrofit, int.mouldings, matt chrome technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 323Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For this retrofit there are no installation instructions. To be installed by skilled personnel only, best by a BMW partner. BMW is unable to accept any responsibility for operating failures and damages resulting from incorrect installation. Installation time approx. 4.5 hours, which may vary depending on the condition of the vehicle and the equipment in it. |
|||||||||
| 01 | Set of moldings interior, matt chrome | 1 | 51160002763 | $112.95 | ENDED | Shop at ECS Tuning | ||||
| 02 | Armrest, matt chrome, front, left | SCHWARZ | 1 | 51418259963 | $127.95 | Shop at ECS Tuning | ||||
| 02 | Armrest, matt chrome, front, right | SCHWARZ | 1 | 51418259964 | $127.95 | Shop at ECS Tuning | ||||
| 02 | Armrest, matt chrome, front, left | N6TT GRAU | 1 | 51418259979 | $127.95 | Shop at ECS Tuning | ||||
| 02 | Armrest, matt chrome, front, right | N6TT GRAU | 1 | 51418259980 | $127.95 | Shop at ECS Tuning | ||||
| 03 | Armrest, matt chrome, rear, left | SCHWARZ | 1 | 51438257961 | $88.00 | Shop at ECS Tuning | ||||
| 03 | Armrest, matt chrome, rear, right | SCHWARZ | 1 | 51438257962 | $88.00 | Shop at ECS Tuning | ||||
| 03 | Armrest, matt chrome, rear, left | GRAU | 1 | 51438257965 | $94.00 | ENDED | Shop at ECS Tuning | |||
| 03 | Armrest, matt chrome, rear, right | GRAU | 1 | 51438257966 | $94.00 | ENDED | Shop at ECS Tuning | |||
| 04 | Cover, matt chrome | 1 | 51418236125 | $5.57 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
