Fine wood trim for BMW 3 Series E36 320i (1995)

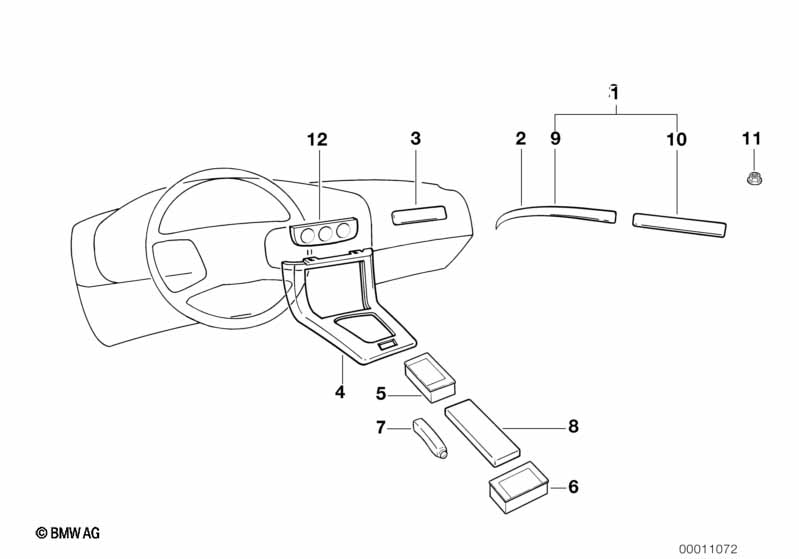

This Fine wood trim technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | WALNUT ROOT WOOD,LIGHT STAIN TONE 91 |
|||||||||
| not suitable for wind deflector | ||||||||||
| 01 | Set wood strips | NUSSBAUM-WUR.91 | 1 | 82259404240 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Set wood strips | NUSSBAUM-WUR.91 | 1 | 82259402923 | ENDED, +core | Shop at ECS Tuning | ||||
| 03 | Wooden strip | NUSSBAUM-WUR.91 | 1 | 51168186140 | $103.87 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Window lifts,electric,front/rear |
S411A=Yes |
|||||||||
| 04 | Storing partition wood strips | NUSSBAUM-WUR.91 | 1 | 82259402672 | ENDED | Shop at ECS Tuning | ||||
| 05 | Ashtray front | NUSSBAUM-WUR.91 | 1 | 82259402859 | ENDED, +core | Shop at ECS Tuning | ||||
| 06 | Ashtray rear | NUSSBAUM-WUR.91 | 1 | 82259402860 | $53.00 | ENDED | Shop at ECS Tuning | |||
| 07 | Burr walnut handbrake grip | HOCHGLANZ ´91 | 1 | 82259402861 | $138.95 | Shop at ECS Tuning | ||||
| 08 | With wooden trim cassette box | NUSSBAUM-WUR.91 | 1 | 82259401884 | ENDED, +core | Shop at ECS Tuning | ||||
| 09 | Wooden cover front left | NUSSBAUM-WUR.91 | 1 | 82259402615 | ENDED, +core | Shop at ECS Tuning | ||||
| 09 | Wooden cover front right | NUSSBAUM-WUR.91 | 1 | 82259402616 | ENDED, +core | Shop at ECS Tuning | ||||
| 10 | Wooden cover rear left | NUSSBAUM-WUR.91 | 1 | 82259402619 | ENDED, +core | Shop at ECS Tuning | ||||
| 10 | Wooden cover rear right | NUSSBAUM-WUR.91 | 1 | 82259402620 | ENDED, +core | Shop at ECS Tuning | ||||
| 11 | Cap nut | 10 STUECK | X | 82119402849 | $6.03 | ENDED | Shop at ECS Tuning | |||
| 12 | Cover | NUSSBAUM-WUR.91 | 1 | 82259404587 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Air conditioning |
S530A=Yes |
|||||||||
| 12 | Cover | NUSSBAUM-WUR.91 | 1 | 82259404588 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Automatic air conditioning |
S534A=Yes |
|||||||||
| 12 | Cover | NUSSBAUM-WUR.91 | 1 | 82259405089 | ENDED, +core | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
