Fine wood trim for BMW 3 Series E36 325td (1998)

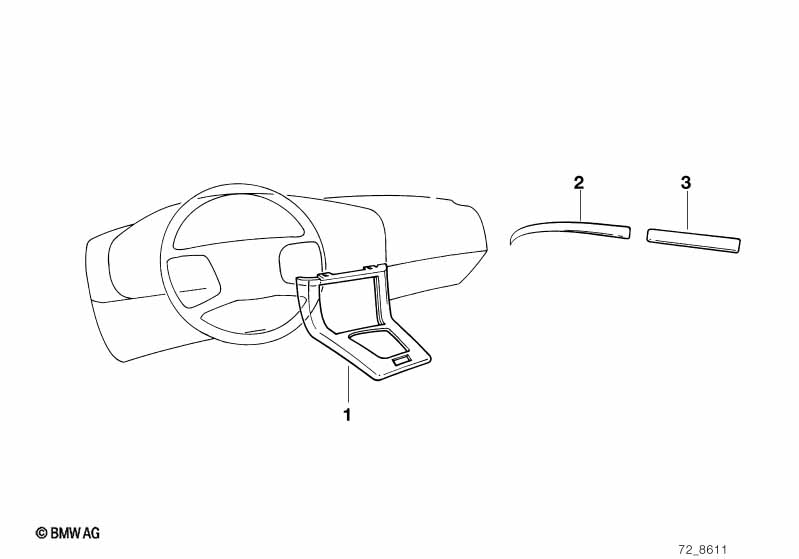

This Fine wood trim technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| PARTS,BONDED VERSION | ||||||||||
| 02 | Wooden cover front left | NUSSBAUM-WURZEL | 1 | 82259402135 | ENDED | Shop at ECS Tuning | ||||
| 02 | Wooden cover front right | NUSSBAUM-WURZEL | 1 | 82259402139 | ENDED | Shop at ECS Tuning | ||||
| 03 | Wooden cover rear left | NUSSBAUM-WURZEL | 1 | 82259402140 | ENDED | Shop at ECS Tuning | ||||
| 03 | Wooden cover rear right | NUSSBAUM-WURZEL | 1 | 82259402147 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 325td Fine wood trim?
- This technical diagram illustrates the Fine wood trim within the Retrofitting / conversion / accessories group for the 3 Series E36 325td produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the Wooden cover front left (Part #82259402135).
- Which models use the hardware listed in this Fine wood trim?
- The hardware and components featured in the Fine wood trim are specific to the 3 Series E36 325td produced during 1998. These technical specifications ensure that parts like the Wooden cover front left (82259402135) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fine wood trim assembly?
- Each item in the Fine wood trim corresponds to the numbered list below the illustration. For the 3 Series E36 325td, you can identify the Wooden cover front left by locating its position on the schematic, which then links to the official BMW part number 82259402135 for the Retrofitting / conversion / accessories section.
