Decor trims, Bicolor leather for BMW 3 Series E46 330d (2005)

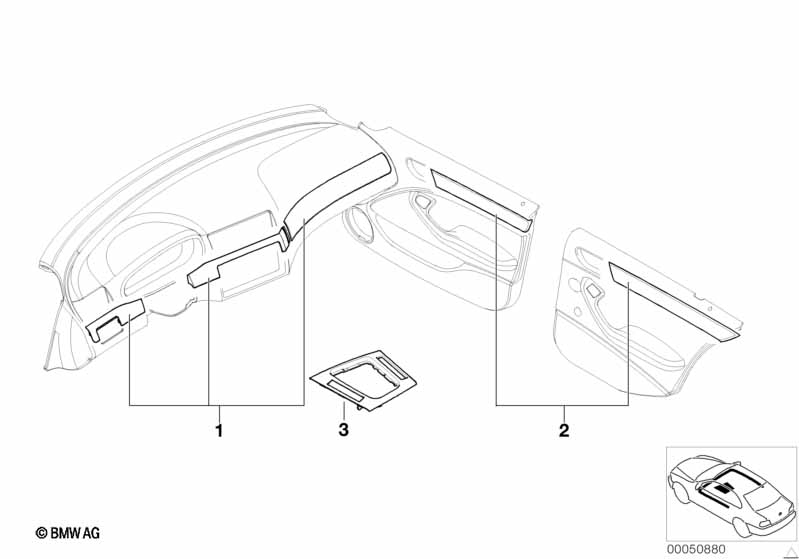

This Decor trims, Bicolor leather technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Decorative strip, leather | SCHWARZ-GRAU | 1 | 51160006464 | $86.00 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Decorative strip, leather | SCHW.-TANINROT | 1 | 51160006465 | $312.48 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Decorative strip, leather | SCHWARZ-GRAU | 1 | 51160006503 | $401.76 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Decorative strip, leather | SCHW.-TANINROT | 1 | 51160006504 | $401.76 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Window lifts,electric,front/rear |
S411A=No |
|||||||||
| 03 | Leather cover, oddments tray | SCHWARZ | 1 | 51160006506 | $29.50 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Leather cover, oddments tray | GRAU | 1 | 51160006507 | $121.64 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Leather cover, oddments tray | TANINROT | 1 | 51160006508 | $121.64 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Window lifts,electric,front/rear |
S411A=Yes |
|||||||||
| 03 | Leather cover, oddments tray | SCHWARZ | 1 | 51160006514 | $29.50 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Leather cover, oddments tray | GRAU | 1 | 51160006515 | $121.64 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Leather cover, oddments tray | TANINROT | 1 | 51160006516 | $121.64 | ENDED, +core | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
