Leather glovebox panel for BMW 3 Series E36 318is (1999)

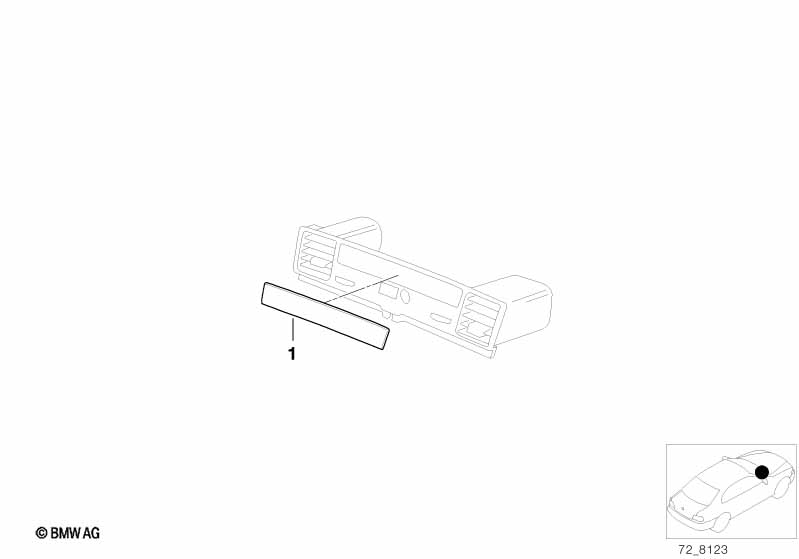

This Leather glovebox panel technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover | KLASSISCHROT | 1 | 82209404596 | ENDED | Shop at ECS Tuning | ||||
| 01 | Cover | TUERKIS | 1 | 82209404597 | ENDED | Shop at ECS Tuning | ||||
| 01 | Cover | BLAUVIOLETT | 1 | 82209404598 | ENDED | Shop at ECS Tuning | ||||
| 01 | Cover | SAFRANGELB | 1 | 82209404599 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
