Retrofit trim grill for BMW 3 Series E90 LCI 320i (2012)
This Retrofit trim grill technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Grille w chrome frame, left | 1 | 51137201967 | $59.34 | Shop at ECS Tuning | |||||
| 02 | Grille w chrome frame, right | 1 | 51137201968 | $59.34 | Shop at ECS Tuning | |||||
| 02 | Grille left | CHROM | 1 | 51137201969 | $59.34 | Shop at ECS Tuning | ||||

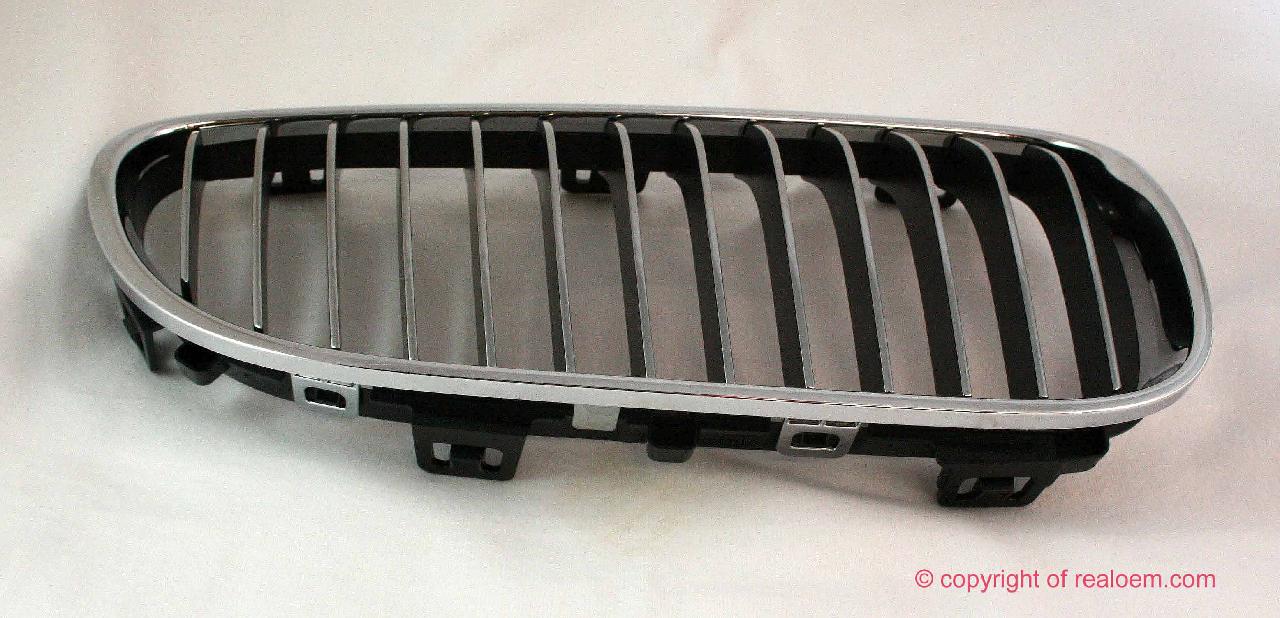

| 02 | Grille right | CHROM | 1 | 51137201970 | $59.34 | Shop at ECS Tuning | ||||
| 02 | Front trim grill, black, left | M PERFORMANCE | 1 | 51712146911 | $72.50 | ENDED | Shop at ECS Tuning | |||
| 02 | Front trim grill, black, right | M PERFORMANCE | 1 | 51712146912 | $72.50 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
