Trunk room net for BMW 1 Series F20 LCI M135i (2016)

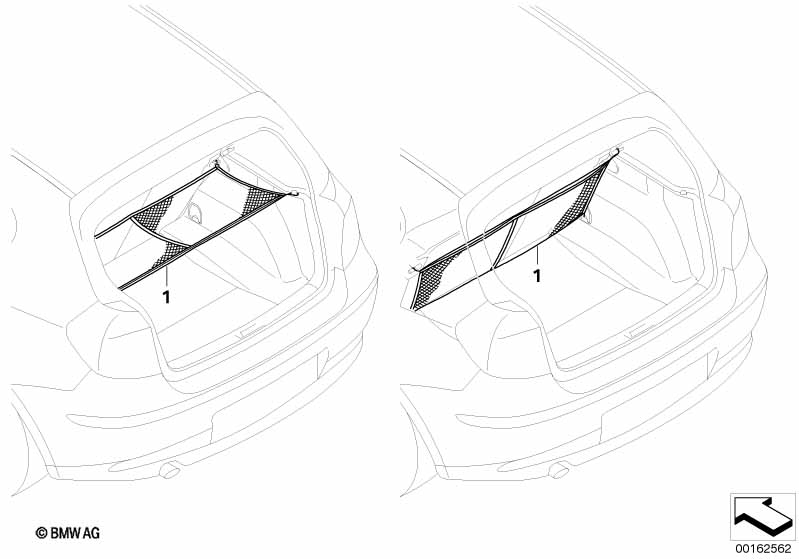

This Trunk room net technical drawing provides a detailed breakdown of the assembly for the 1 Series F20 LCI M135i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2016.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with National version China |
L8AAA=No |
||||||||
| For vehicles with Through-loading system or Storage compartment package |
S465A=Yes S493A=Yes |
|||||||||
| 01 | Trunk room net | 1 | 51470417624 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
