Illuminated door sill strip retrofit kit for BMW 1 Series E88 118d (2013)

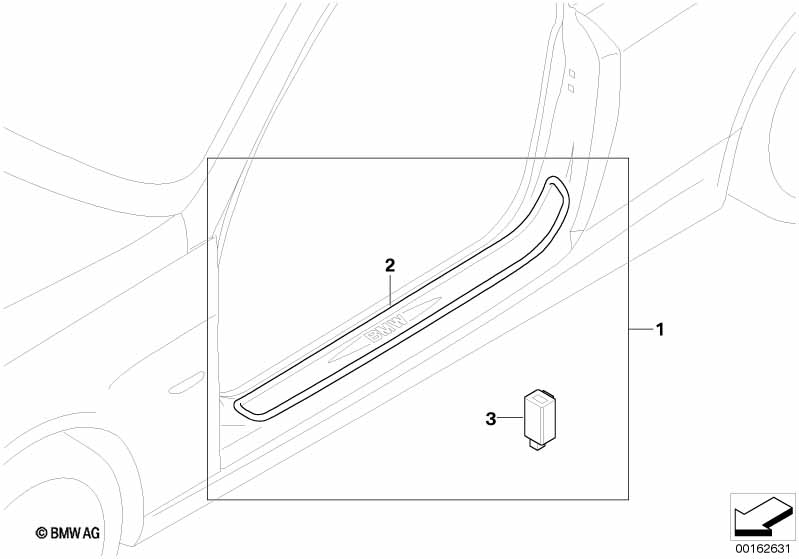

This Illuminated door sill strip retrofit kit technical drawing provides a detailed breakdown of the assembly for the 1 Series E88 118d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important notice: The installation instructions are not included in the retrofit kit. Print out the latest update of the instructions from the Aftersales Assistance Portal (ASAP) and hand them over to the customer. |
|||||||||
| 01 | Retrofit kit sill trim | 1 | 51470427682 | $647.00 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Clip, grey | L=14,85MM | 8 | 07147149477 | $0.47 | Shop at ECS Tuning | ||||
| 02 | Illuminated door sill strip left | 1 | 51470427683 | $285.95 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 02 | Illuminated door sill strip right | 1 | 51470427684 | $285.95 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Clip, grey | L=14,85MM | 4 | 07147149477 | $0.47 | Shop at ECS Tuning | ||||
| 03 | Inverter | 1 | 51472150905 | $74.00 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series E88 118d Illuminated door sill strip retrofit kit?
- This technical diagram illustrates the Illuminated door sill strip retrofit kit within the Retrofitting / conversion / accessories group for the 1 Series E88 118d produced during 2013. It provides a detailed exploded view of the components, identifying key parts such as the Retrofit kit sill trim (Part #51470427682).
- Which models use the hardware listed in this Illuminated door sill strip retrofit kit?
- The hardware and components featured in the Illuminated door sill strip retrofit kit are specific to the 1 Series E88 118d produced during 2013. These technical specifications ensure that parts like the Retrofit kit sill trim (51470427682) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Illuminated door sill strip retrofit kit assembly?
- Each item in the Illuminated door sill strip retrofit kit corresponds to the numbered list below the illustration. For the 1 Series E88 118d, you can identify the Retrofit kit sill trim by locating its position on the schematic, which then links to the official BMW part number 51470427682 for the Retrofitting / conversion / accessories section.
