Interior trim finishers black high-gloss for BMW 3 Series E90 LCI 330i (2011)

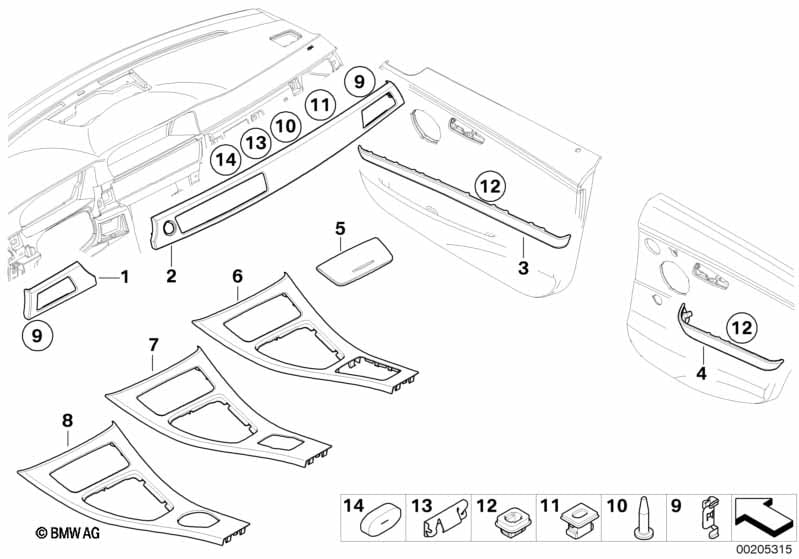

This Interior trim finishers black high-gloss technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 330i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Decorative strip, dashboard right | DIAMANTSCHWARZ | 1 | 51456985891 | +core | Shop at ECS Tuning | ||||
| 02 | Decorative strip, dashboard left | DIAMANTSCHWARZ | 1 | 51456985893 | +core | Shop at ECS Tuning | ||||
| 03 | Decorative strip, door front left | DIAMANTSCHWARZ | 1 | 51419171787 | $32.68 | Shop at ECS Tuning | ||||
| 03 | Decorative strip, door front right | DIAMANTSCHWARZ | 1 | 51419171788 | $32.68 | Shop at ECS Tuning | ||||
| 04 | Decorative strip, door rear left | DIAMANTSCHWARZ | 1 | 51429171791 | $19.53 | Shop at ECS Tuning | ||||
| 04 | Decorative strip, door rear right | DIAMANTSCHWARZ | 1 | 51429171792 | $19.53 | Shop at ECS Tuning | ||||
| 05 | Cover | SCHWARZ/CHROM | 1 | 51169170854 | $37.00 | Shop at ECS Tuning | ||||
| 06 | Cover center console | DIAMANTSCHWARZ | 1 | 51166982645 | Shop at ECS Tuning | |||||
| For vehicles with On-board monitor with TV or Navigation system Business or Navigation system Professional |
S602A=Yes S606A=Yes S609A=Yes |
|||||||||
| 07 | Cover center console | DIAMANTSCHWARZ | 1 | 09/2008 | 51169170933 | Shop at ECS Tuning | ||||
| 09 | Clip, outer decor strip | 2 | 51457146752 | $0.63 | Shop at ECS Tuning | |||||
| 10 | Pin | D=6X25 | 7 | 51458266808 | $1.02 | Shop at ECS Tuning | ||||
| 11 | Plug-in retainer | 7 | 51457152442 | $0.73 | Shop at ECS Tuning | |||||
| 12 | Plug-in retainer | 7 | 07149158194 | $0.79 | Shop at ECS Tuning | |||||
| 13 | Clamp | 1 | 51457146751 | $0.85 | Shop at ECS Tuning | |||||
| 14 | Gasket, decor panel | 7 | 51166952674 | $0.73 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
