Floor mats Avenue for BMW 5 Series F10 LCI 530d (2013)

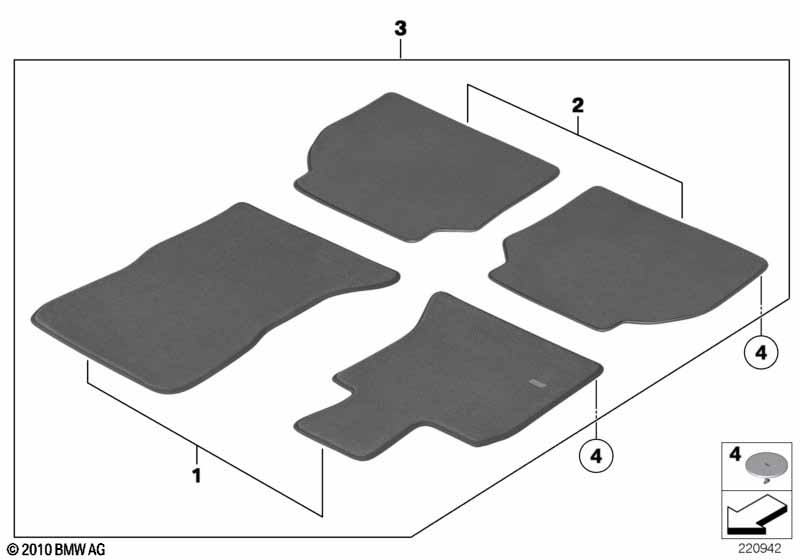

This Floor mats Avenue technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 LCI 530d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with National version China |
L8AAA=No |
||||||||
| 03 | Set of floor mats Velours | ANTHRAZIT LHD | 1 | 07/2013 | 51472346790 | ENDED | Shop at ECS Tuning | |||
| 04 | Hook&loop element with bayonet fastener | D62MM/L16MM | 8 | 07149166608 | $2.17 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series F10 LCI 530d Floor mats Avenue?
- This technical diagram illustrates the Floor mats Avenue within the Retrofitting / conversion / accessories group for the 5 Series F10 LCI 530d produced during 2013. It provides a detailed exploded view of the components, identifying key parts such as the Set of floor mats Velours (Part #51472346790).
- Which models use the hardware listed in this Floor mats Avenue?
- The hardware and components featured in the Floor mats Avenue are specific to the 5 Series F10 LCI 530d produced during 2013. These technical specifications ensure that parts like the Set of floor mats Velours (51472346790) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Floor mats Avenue assembly?
- Each item in the Floor mats Avenue corresponds to the numbered list below the illustration. For the 5 Series F10 LCI 530d, you can identify the Set of floor mats Velours by locating its position on the schematic, which then links to the official BMW part number 51472346790 for the Retrofitting / conversion / accessories section.
