Retrofit kit, interior trim, adhesive for BMW 3 Series E90 LCI 325i (2012)

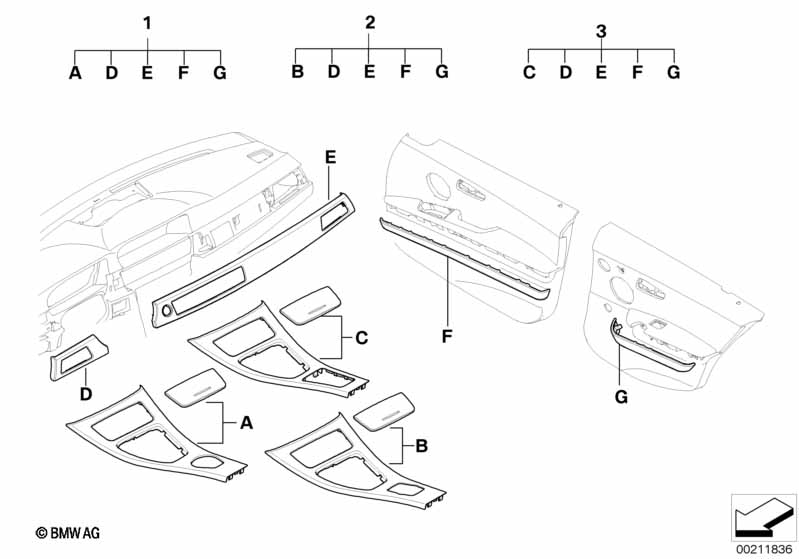

This Retrofit kit, interior trim, adhesive technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Please specify when ordering: Vehicle Identification Number (VIN) Color or color code For vehicles with Fine-wood trim walnut light and Fine wood trim burr walnut and Interior strips, alu, satin-polished and Int. mouldings aluminium glacier-silver |
S4A3A=No S4ABA=No S4B9A=No S4MGA=No |
||||||||
| For vehicles with TV function and On-board monitor with TV and Navigation system Business and Navigation system Professional |
S601A=Yes S602A=No S606A=No S609A=Yes |
|||||||||
| 02 | Complete kit for interior enhancement | 1 | 51452166292 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with TV function and On-board monitor with TV and Navigation system Business and Navigation system Professional |
S601A=No S602A=Yes S606A=No S609A=No |
|||||||||
| 02 | Complete kit for interior enhancement | 1 | 51452166292 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with TV function and On-board monitor with TV and Navigation system Business and Navigation system Professional |
S601A=No S602A=No S606A=Yes S609A=No |
|||||||||
| 02 | Complete kit for interior enhancement | 1 | 51452166292 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with TV function and On-board monitor with TV and Navigation system Business and Navigation system Professional |
S601A=No S602A=No S606A=No S609A=Yes |
|||||||||
| 02 | Complete kit for interior enhancement | 1 | 51452166292 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with TV function and On-board monitor with TV and Navigation system Business and Navigation system Professional |
S601A=No S602A=No S606A=No S609A=No |
|||||||||
| 03 | Complete kit for interior enhancement | 1 | 51452166293 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
