Floor mats, all-weather for BMW 7 Series G12 730LdX (2018)

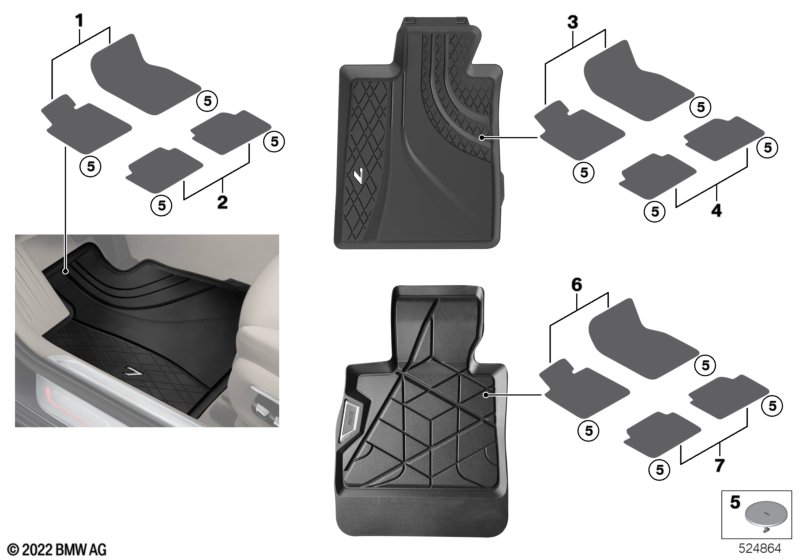

This Floor mats, all-weather technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 730LdX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Executive lounge and Executive Lounge Seating |
P7GZA=No S4F4A=No |
|||||||||
| 01 | Floormats, all-weather, LHD, front | SCHWARZ | 1 | 51472443985 | Shop at ECS Tuning | |||||
| 01 | Floormats, all-weather, LHD, front | BEIGE | 1 | 51472365432 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Floor mats, all-weather, rear | BEIGE | X | 51472365431 | Shop at ECS Tuning | |||||
| -- | Floor mats, all-weather, rear | BEIGE | X | 51472365434 | ENDED | Shop at ECS Tuning | ||||
| 02 | Floor mats, all-weather, rear | SCHWARZ | 1 | 51472444038 | Shop at ECS Tuning | |||||
| 02 | Floor mats, all-weather, rear | BEIGE | 1 | 51472365431 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Floormats, all-weather, LHD, front | BEIGE | X | 51472365432 | Shop at ECS Tuning | |||||
| 03 | Floormats, all-weather, LHD, front | SCHWARZ | 1 | 51472443985 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Floor mats, all-weather, rear | SCHWARZ | X | 51472444038 | Shop at ECS Tuning | |||||
| Note: New design with improved water drain |
||||||||||
| -- | Floor mats, all-weather, rear | SCHWARZ | X | 51472444039 | Shop at ECS Tuning | |||||
| Note: New design with improved water drain |
||||||||||
| 04 | Floor mats, all-weather, rear | SCHWARZ | 1 | 51472444038 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Floormats, all-weather, LHD, front | SCHWARZ | X | 51472443985 | Shop at ECS Tuning | |||||
| Note: New design with improved water drain |
||||||||||
| -- | Floormats, all-weather, RHD, front | SCHWARZ | X | 51472444035 | Shop at ECS Tuning | |||||
| Note: New design with improved water drain |
||||||||||
| 05 | Hook&loop element with bayonet fastener | D62MM/L14MM | 4 | 07149166609 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
