Accessories and Retrofittings for BMW X1 F48 LCI 18i

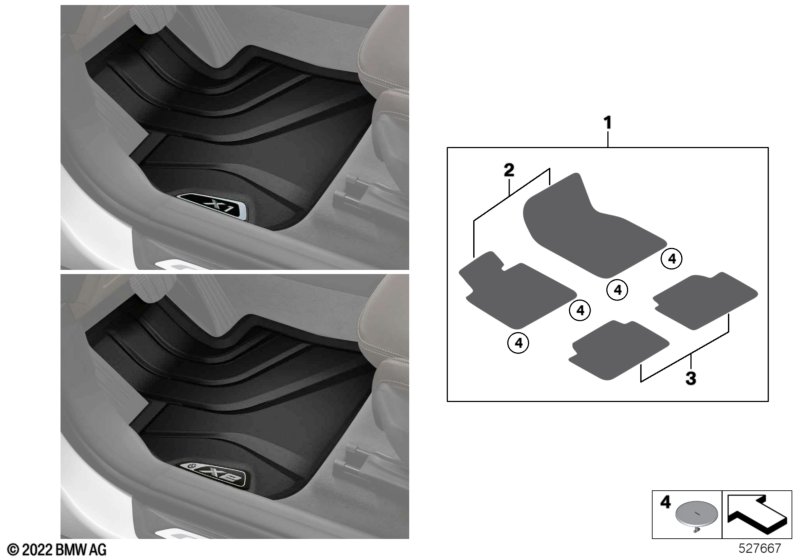

This Accessories and Retrofittings technical drawing provides a detailed breakdown of the assembly for the X1 F48 LCI 18i. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Floor mats, all-weather, front | LHD,SW. | 1 | 51472365853 | Shop at ECS Tuning | |||||
| 02 | Floor mats, all-weather, front | LHD,SW./RT. | 1 | 51472365854 | Shop at ECS Tuning | |||||
| 02 | Floor mats, all-weather, front | LHD,SW./SILBER | 1 | 51472365855 | Shop at ECS Tuning | |||||
| 03 | Floor mats, all-weather, rear | SW. | 1 | 51472365856 | Shop at ECS Tuning | |||||
| 03 | Floor mats, all-weather, rear | SW./RT. | 1 | 51472365857 | Shop at ECS Tuning | |||||
| 03 | Floor mats, all-weather, rear | SW./SILBER | 1 | 51472365858 | Shop at ECS Tuning | |||||
| 04 | Hook&loop element with bayonet fastener | D62MM/L14MM | 4 | 07149166609 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW X1 F48 LCI 18i Accessories and Retrofittings?
- This technical diagram illustrates the Accessories and Retrofittings within the Retrofitting / conversion / accessories group for the X1 F48 LCI 18i. It provides a detailed exploded view of the components, identifying key parts such as the Floor mats, all-weather, front (Part #51472365853).
- Which models use the hardware listed in this Accessories and Retrofittings?
- The hardware and components featured in the Accessories and Retrofittings are specific to the X1 F48 LCI 18i. These technical specifications ensure that parts like the Floor mats, all-weather, front (51472365853) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Accessories and Retrofittings assembly?
- Each item in the Accessories and Retrofittings corresponds to the numbered list below the illustration. For the X1 F48 LCI 18i, you can identify the Floor mats, all-weather, front by locating its position on the schematic, which then links to the official BMW part number 51472365853 for the Retrofitting / conversion / accessories section.
