Taillights Black Line for BMW 1 Series F20 118i (2015)

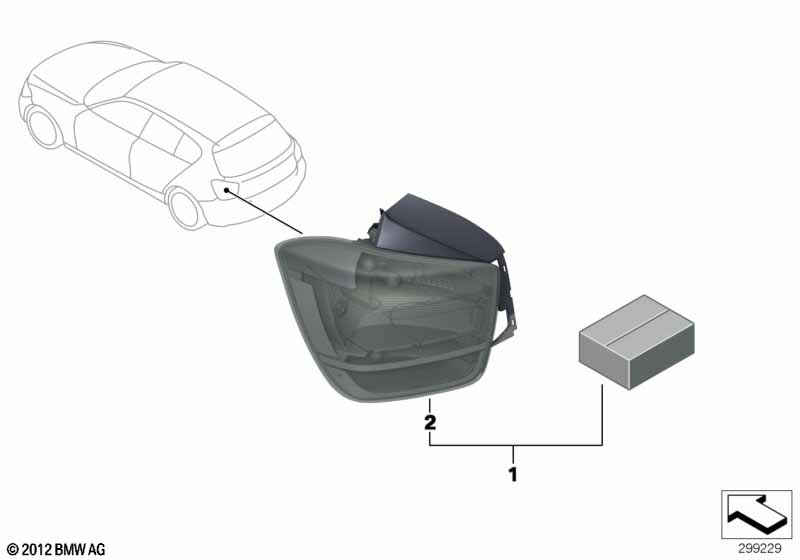

This Taillights Black Line technical drawing provides a detailed breakdown of the assembly for the 1 Series F20 118i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Xenon Light |
S522A=Yes |
|||||||||
| 01 | Set of Black Line taillamps | "M PERFORMANCE" | 1 | 63212231975 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Xenon Light |
S522A=No |
|||||||||
| 01 | Set of Black Line taillamps | "M PERFORMANCE" | 1 | 63212231975 | ENDED | Shop at ECS Tuning | ||||
| Note: Code required for conversion from basic to high taillamp. |
||||||||||
| 02 | Tail light left | RHD F20/21 | 1 | 63212232005 | Shop at ECS Tuning | |||||
| 02 | Tail light right | RHD F20/21 | 1 | 63212232006 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series F20 118i Taillights Black Line?
- This technical diagram illustrates the Taillights Black Line within the Retrofitting / conversion / accessories group for the 1 Series F20 118i produced during 2015. It provides a detailed exploded view of the components, identifying key parts such as the Set of Black Line taillamps (Part #63212231975).
- Which models use the hardware listed in this Taillights Black Line?
- The hardware and components featured in the Taillights Black Line are specific to the 1 Series F20 118i produced during 2015. These technical specifications ensure that parts like the Set of Black Line taillamps (63212231975) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Taillights Black Line assembly?
- Each item in the Taillights Black Line corresponds to the numbered list below the illustration. For the 1 Series F20 118i, you can identify the Set of Black Line taillamps by locating its position on the schematic, which then links to the official BMW part number 63212231975 for the Retrofitting / conversion / accessories section.
