Retrofit kit, tail lamps 'White Line' for BMW 5 Series F10 520d (2013)

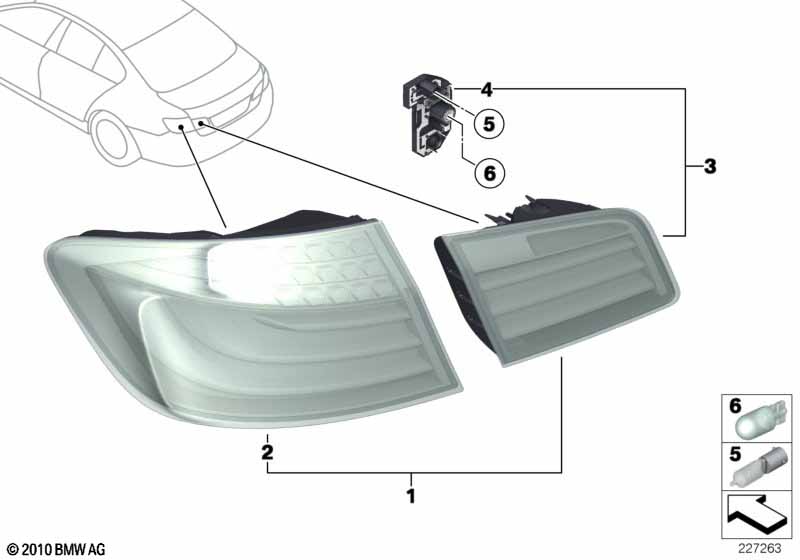

This Retrofit kit, tail lamps 'White Line' technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Retrofit kit, taillight, White Line | 1 | 63212167216 | ENDED | Shop at ECS Tuning | |||||
| 02 | Rear light in the side panel, left | WHITE LINE | 1 | 63212181347 | ENDED | Shop at ECS Tuning | ||||
| 02 | Rear light in the side panel, right | WHITE LINE | 1 | 63212181348 | ENDED | Shop at ECS Tuning | ||||
| 03 | Rear light in trunk lid, left | WHITE LINE | 1 | 63212181349 | ENDED | Shop at ECS Tuning | ||||
| 03 | Rear light in trunk lid, right | WHITE LINE | 1 | 63212181350 | ENDED | Shop at ECS Tuning | ||||
| 04 | Bulb socket,rear light in trunk lid,left | 1 | 63217263535 | Shop at ECS Tuning | ||||||
| 04 | Bulb socket,rear light in trunk lid,rght | 1 | 63217263536 | Shop at ECS Tuning | ||||||
| 05 | Longlife bulb | 12V 16W | 2 | 63217160935 | $6.42 | Shop at ECS Tuning | ||||
| 06 | Longlife bulb | 12V 21W H21W | 2 | 63217160788 | $11.70 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
