Retrofit, M outside mirror for BMW 3 Series E36 318tds (2000)

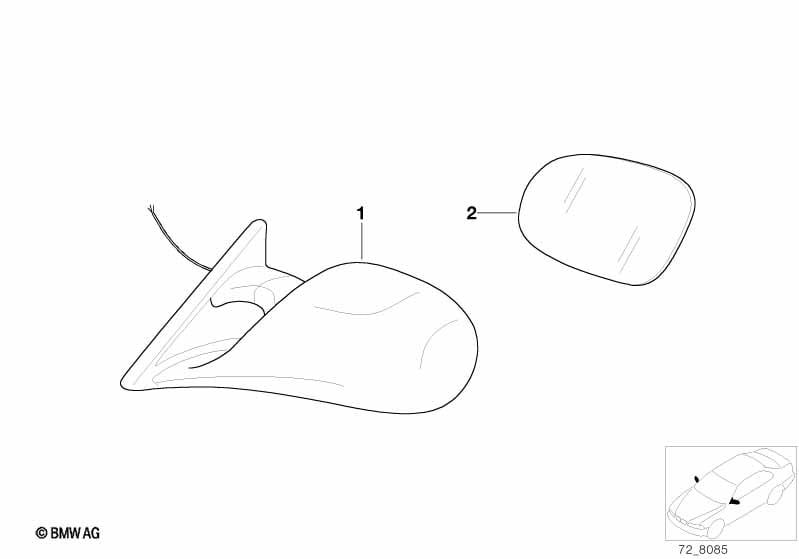

This Retrofit, M outside mirror technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For this retrofit there are no installation instructions. To be installed by skilled personnel only, best by a BMW partner. BMW is unable to accept any responsibility for operating failures and damages resulting from incorrect installation. Installation time approx. 0.5 hours, which may vary depending on the condition of the vehicle and the equipment in it. |
|||||||||
| ONLY IN CONJUNCTION WITH MIRROR GLAS | ||||||||||
| 01 | Left primed el.exterior heatable mirror | M TECHNIC | 1 | 51162263981 | +core | Shop at ECS Tuning | ||||
| 01 | Right primed el.exter.heatable mirror | M TECHNIC | 1 | 51162263982 | +core | Shop at ECS Tuning | ||||
| 01 | Left painted el.exterior heatable mirror | CODE - UNI | 1 | 51169067849 | ENDED, +core | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 01 | Left painted el.exterior heatable mirror | CODE - MET. | 1 | 51169067850 | ENDED, +core | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 01 | Right painted el.exter.heatable mirror | CODE - UNI | 1 | 51169067853 | ENDED, +core | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 01 | Right painted el.exter.heatable mirror | CODE - MET. | 1 | 51169067854 | ENDED, +core | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 02 | Mirror glas heated (drivers side) | M TECHNIC | 1 | 51162267192 | $95.51 | Shop at ECS Tuning | ||||
| 02 | Mirror glas heated (co-drivers side) | M TECHNIC | 1 | 51162267223 | $95.51 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
