Retrofit, M outside mirror for BMW 3 Series E46 320Cd (2006)

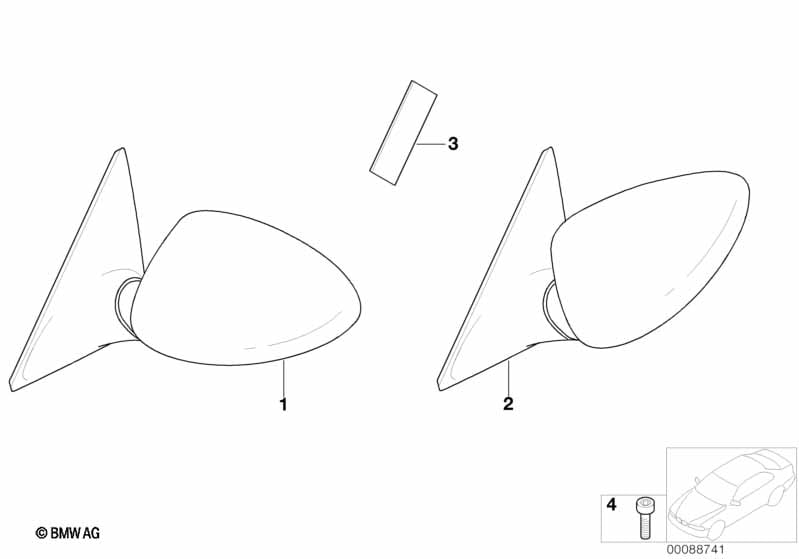

This Retrofit, M outside mirror technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320Cd. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Retrofit on vehicles with Option SA 459 possible only up to breakpoint 09/03. |
|||||||||
| 03 | Adhesive tape | 3000MM | 1 | 51711976999 | $28.02 | Shop at ECS Tuning | ||||
| 04 | Screw self-tapping | M6X14 Z1 | 3 | 51168220001 | $3.81 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 320Cd Retrofit, M outside mirror?
- This technical diagram illustrates the Retrofit, M outside mirror within the Retrofitting / conversion / accessories group for the 3 Series E46 320Cd produced during 2006. It provides a detailed exploded view of the components, identifying key parts such as the Adhesive tape (Part #51711976999).
- Which models use the hardware listed in this Retrofit, M outside mirror?
- The hardware and components featured in the Retrofit, M outside mirror are specific to the 3 Series E46 320Cd produced during 2006. These technical specifications ensure that parts like the Adhesive tape (51711976999) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Retrofit, M outside mirror assembly?
- Each item in the Retrofit, M outside mirror corresponds to the numbered list below the illustration. For the 3 Series E46 320Cd, you can identify the Adhesive tape by locating its position on the schematic, which then links to the official BMW part number 51711976999 for the Retrofitting / conversion / accessories section.
