Retrofit kit M aerodyn. package for BMW 3 Series E91 330i (2008)

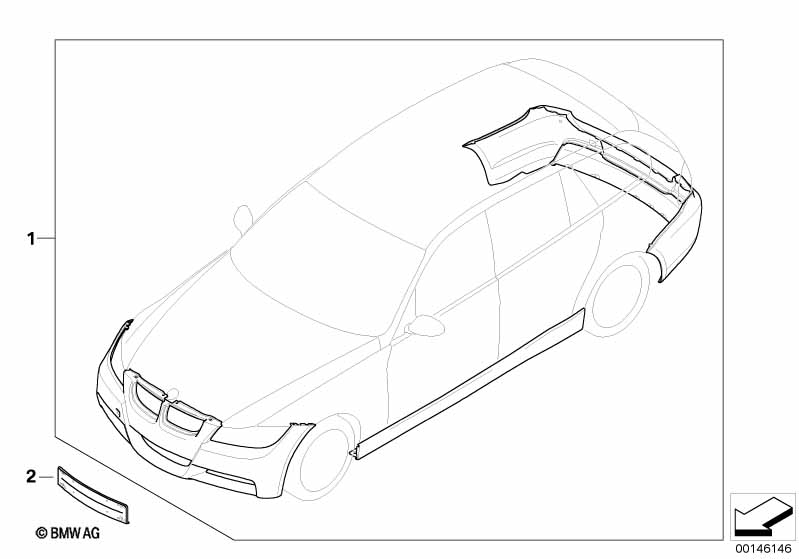

This Retrofit kit M aerodyn. package technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 330i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles without fog headlights it is necessary to refit wiring and the switch For vehicles with adaptive cruise control (ACC): order the centre grid and the ACC cover separately. (BTE 51_5969) not in connection with BMW independent park heating Important notice: The installation instructions are not included in the retrofit kit. Print out the latest update of the instructions from the Aftersales Assistance Portal (ASAP) and hand them over to the customer. For vehicles with Auxiliary heating |
S536A=No |
||||||||
| 01 | Retrofit kit M aerodyn. package | GRUNDIERT | 1 | 09/2008 | 51950403534 | $1532.00 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Cover, lower part center | -M- | 1 | 09/2008 | 51127906504 | $84.92 | Shop at ECS Tuning | |||
| When ordering indicate color code | ||||||||||
| 01 | Retrofit kit M aerodyn.package, paint. | CODE - UNI/MET. | 1 | 09/2008 | 51950409759 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Cover, lower part center | -M- | 1 | 09/2008 | 51127906504 | $84.92 | Shop at ECS Tuning | |||
| For vehicles with Park Distance Control (PDC), rear |
S507A=Yes |
|||||||||
| 01 | Retrofit kit M aerodyn. package | GRUNDIERT | 1 | 09/2008 | 51950409702 | $1532.00 | ENDED | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Cover, lower part center | -M- | 1 | 09/2008 | 51127906504 | $84.92 | Shop at ECS Tuning | |||
| For vehicles with Park Distance Control (PDC), rear When ordering indicate color code |
S507A=Yes |
|||||||||
| 01 | Retrofit kit M aerodyn.package, paint. | CODE - UNI/MET. | 1 | 09/2008 | 51950409761 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Cover, lower part center | -M- | 1 | 09/2008 | 51127906504 | $84.92 | Shop at ECS Tuning | |||
| For vehicles with Park Distance Control (PDC) |
S508A=Yes |
|||||||||
| 01 | Retrofit kit M aerodyn. package | GRUNDIERT | 1 | 09/2008 | 51950409703 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Cover, lower part center | -M- | 1 | 09/2008 | 51127906504 | $84.92 | Shop at ECS Tuning | |||
| For vehicles with Park Distance Control (PDC) When ordering indicate color code |
S508A=Yes |
|||||||||
| 01 | Retrofit kit M aerodyn.package, paint. | CODE - UNI/MET. | 1 | 09/2008 | 51950409762 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Cover, lower part center | -M- | 1 | 09/2008 | 51127906504 | $84.92 | Shop at ECS Tuning | |||
| For vehicles with Headlight cleaning system |
S502A=Yes |
|||||||||
| 01 | Retrofit kit M aerodyn. package | GRUNDIERT | 1 | 09/2008 | 51950409701 | $1532.00 | ENDED | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Cover, lower part center | -M- | 1 | 09/2008 | 51127906504 | $84.92 | Shop at ECS Tuning | |||
| For vehicles with Headlight cleaning system When ordering indicate color code |
S502A=Yes |
|||||||||
| 01 | Retrofit kit M aerodyn.package, paint. | CODE - UNI/MET. | 1 | 09/2008 | 51950409760 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Cover, lower part center | -M- | 1 | 09/2008 | 51127906504 | $84.92 | Shop at ECS Tuning | |||
| For vehicles with Headlight cleaning system and Park Distance Control (PDC) |
S502A=Yes S508A=Yes |
|||||||||
| 01 | Retrofit kit M aerodyn. package | GRUNDIERT | 1 | 09/2008 | 51950409705 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Cover, lower part center | -M- | 1 | 09/2008 | 51127906504 | $84.92 | Shop at ECS Tuning | |||
| For vehicles with Headlight cleaning system and Park Distance Control (PDC) When ordering indicate color code |
S502A=Yes S508A=Yes |
|||||||||
| 01 | Retrofit kit M aerodyn.package, paint. | CODE - UNI/MET. | 1 | 09/2008 | 51950409764 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Cover, lower part center | -M- | 1 | 09/2008 | 51127906504 | $84.92 | Shop at ECS Tuning | |||
| For vehicles with Headlight cleaning system and Park Distance Control (PDC), rear |
S502A=Yes S507A=Yes |
|||||||||
| 01 | Retrofit kit M aerodyn. package | GRUNDIERT | 1 | 09/2008 | 51950409704 | $1532.00 | ENDED | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Cover, lower part center | -M- | 1 | 09/2008 | 51127906504 | $84.92 | Shop at ECS Tuning | |||
| For vehicles with Headlight cleaning system and Park Distance Control (PDC), rear When ordering indicate color code |
S502A=Yes S507A=Yes |
|||||||||
| 01 | Retrofit kit M aerodyn.package, paint. | CODE - UNI/MET. | 1 | 09/2008 | 51950409763 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Cover, lower part center | -M- | 1 | 09/2008 | 51127906504 | $84.92 | Shop at ECS Tuning | |||
| 02 | Base, licence plate primed | -M- | 1 | 09/2008 | 51118041136 | $40.80 | +core | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Phillips screw f plastic material | TS5X25-ZNNID-SW | 4 | 09/2008 | 07146959925 | $0.29 | Shop at ECS Tuning | |||
| For vehicles with Control of number-plate attachment |
S992A=Yes |
|||||||||
| 02 | Licence plate base | 1 | 09/2008 | 51117058449 | $10.50 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Phillips screw f plastic material | TS5X25-ZNNID-SW | 1 | 09/2008 | 07146959925 | $0.29 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
