Retrofit kit M aerodyn. package for BMW 3 Series E90 LCI 320d (2011)

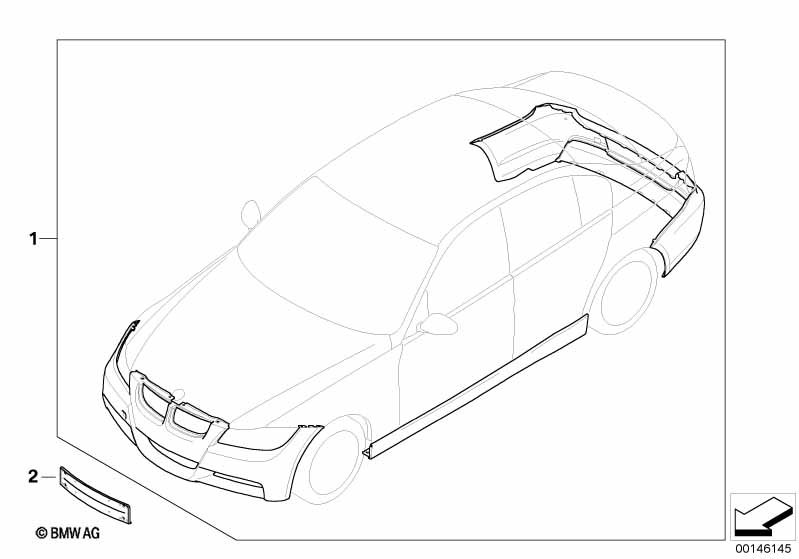

This Retrofit kit M aerodyn. package technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | On vehicles with ACC: Order center grill section and ACC cover separately. Important notice: The installation instructions are not included in the retrofit kit. Print out the latest update of the instructions from the Aftersales Assistance Portal (ASAP) and hand them over to the customer. If auxiliary heater is installed, replace the cover at the lower left, refer to ITU 51_5862 For vehicles without fog headlights it is necessary to refit wiring and the switch |
|||||||||
| 01 | Retrofit kit M aerodyn. package | GRUNDIERT | 1 | 09/2008 | 51952147160 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Front left brake air duct | -M- | 1 | 09/2008 | 51747891379 | Shop at ECS Tuning | ||||
| -- | Front right brake air duct | -M- | 1 | 09/2008 | 51747891380 | Shop at ECS Tuning | ||||
| -- | Panel for activated carbon filter | 1 | 09/2008 | 51717070141 | $16.37 | Shop at ECS Tuning | ||||
| -- | Cover, bottom left | 1 | 09/2008 | 51717892801 | $47.02 | Shop at ECS Tuning | ||||
| -- | Cover, bottom right | 1 | 09/2008 | 51717892802 | $47.02 | Shop at ECS Tuning | ||||
| -- | Insert for bumper, rear | -M- | 1 | 09/2008 | 51127892139 | $84.92 | Shop at ECS Tuning | |||
| When ordering indicate color code | ||||||||||
| 01 | Retrofit kit M aerodyn.package, paint. | CODE - UNI/MET. | 1 | 09/2008 | 51952147194 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Front left brake air duct | -M- | 1 | 09/2008 | 51747891379 | Shop at ECS Tuning | ||||
| -- | Front right brake air duct | -M- | 1 | 09/2008 | 51747891380 | Shop at ECS Tuning | ||||
| -- | Panel for activated carbon filter | 1 | 09/2008 | 51717070141 | $16.37 | Shop at ECS Tuning | ||||
| -- | Cover, bottom left | 1 | 09/2008 | 51717892801 | $47.02 | Shop at ECS Tuning | ||||
| -- | Cover, bottom right | 1 | 09/2008 | 51717892802 | $47.02 | Shop at ECS Tuning | ||||
| -- | Insert for bumper, rear | -M- | 1 | 09/2008 | 51127892139 | $84.92 | Shop at ECS Tuning | |||
| For vehicles with Park Distance Control (PDC) |
S508A=Yes |
|||||||||
| 01 | Retrofit kit M aerodyn. package | GRUNDIERT | 1 | 09/2008 | 51952147163 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Front left brake air duct | -M- | 1 | 09/2008 | 51747891379 | Shop at ECS Tuning | ||||
| -- | Front right brake air duct | -M- | 1 | 09/2008 | 51747891380 | Shop at ECS Tuning | ||||
| -- | Panel for activated carbon filter | 1 | 09/2008 | 51717070141 | $16.37 | Shop at ECS Tuning | ||||
| -- | Cover, bottom left | 1 | 09/2008 | 51717892801 | $47.02 | Shop at ECS Tuning | ||||
| -- | Cover, bottom right | 1 | 09/2008 | 51717892802 | $47.02 | Shop at ECS Tuning | ||||
| -- | Insert for bumper, rear | -M- | 1 | 09/2008 | 51127892139 | $84.92 | Shop at ECS Tuning | |||
| For vehicles with Park Distance Control (PDC) When ordering indicate color code |
S508A=Yes |
|||||||||
| 01 | Retrofit kit M aerodyn.package, paint. | CODE - UNI/MET. | 1 | 09/2008 | 51952147197 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Front left brake air duct | -M- | 1 | 09/2008 | 51747891379 | Shop at ECS Tuning | ||||
| -- | Front right brake air duct | -M- | 1 | 09/2008 | 51747891380 | Shop at ECS Tuning | ||||
| -- | Panel for activated carbon filter | 1 | 09/2008 | 51717070141 | $16.37 | Shop at ECS Tuning | ||||
| -- | Cover, bottom left | 1 | 09/2008 | 51717892801 | $47.02 | Shop at ECS Tuning | ||||
| -- | Cover, bottom right | 1 | 09/2008 | 51717892802 | $47.02 | Shop at ECS Tuning | ||||
| -- | Insert for bumper, rear | -M- | 1 | 09/2008 | 51127892139 | $84.92 | Shop at ECS Tuning | |||
| For vehicles with Park Distance Control (PDC), rear |
S507A=Yes |
|||||||||
| 01 | Retrofit kit M aerodyn. package | GRUNDIERT | 1 | 09/2008 | 51952147162 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Front left brake air duct | -M- | 1 | 09/2008 | 51747891379 | Shop at ECS Tuning | ||||
| -- | Front right brake air duct | -M- | 1 | 09/2008 | 51747891380 | Shop at ECS Tuning | ||||
| -- | Panel for activated carbon filter | 1 | 09/2008 | 51717070141 | $16.37 | Shop at ECS Tuning | ||||
| -- | Cover, bottom left | 1 | 09/2008 | 51717892801 | $47.02 | Shop at ECS Tuning | ||||
| -- | Cover, bottom right | 1 | 09/2008 | 51717892802 | $47.02 | Shop at ECS Tuning | ||||
| -- | Insert for bumper, rear | -M- | 1 | 09/2008 | 51127892139 | $84.92 | Shop at ECS Tuning | |||
| For vehicles with Park Distance Control (PDC), rear When ordering indicate color code |
S507A=Yes |
|||||||||
| 01 | Retrofit kit M aerodyn.package, paint. | CODE - UNI/MET. | 1 | 09/2008 | 51952147196 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Front left brake air duct | -M- | 1 | 09/2008 | 51747891379 | Shop at ECS Tuning | ||||
| -- | Front right brake air duct | -M- | 1 | 09/2008 | 51747891380 | Shop at ECS Tuning | ||||
| -- | Panel for activated carbon filter | 1 | 09/2008 | 51717070141 | $16.37 | Shop at ECS Tuning | ||||
| -- | Cover, bottom left | 1 | 09/2008 | 51717892801 | $47.02 | Shop at ECS Tuning | ||||
| -- | Cover, bottom right | 1 | 09/2008 | 51717892802 | $47.02 | Shop at ECS Tuning | ||||
| -- | Insert for bumper, rear | -M- | 1 | 09/2008 | 51127892139 | $84.92 | Shop at ECS Tuning | |||
| For vehicles with Headlight cleaning system |
S502A=Yes |
|||||||||
| 01 | Retrofit kit M aerodyn. package | GRUNDIERT | 1 | 09/2008 | 51952147161 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Front left brake air duct | -M- | 1 | 09/2008 | 51747891379 | Shop at ECS Tuning | ||||
| -- | Front right brake air duct | -M- | 1 | 09/2008 | 51747891380 | Shop at ECS Tuning | ||||
| -- | Panel for activated carbon filter | 1 | 09/2008 | 51717070141 | $16.37 | Shop at ECS Tuning | ||||
| -- | Cover, bottom left | 1 | 09/2008 | 51717892801 | $47.02 | Shop at ECS Tuning | ||||
| -- | Cover, bottom right | 1 | 09/2008 | 51717892802 | $47.02 | Shop at ECS Tuning | ||||
| -- | Insert for bumper, rear | -M- | 1 | 09/2008 | 51127892139 | $84.92 | Shop at ECS Tuning | |||
| For vehicles with Headlight cleaning system When ordering indicate color code |
S502A=Yes |
|||||||||
| 01 | Retrofit kit M aerodyn.package, paint. | CODE - UNI/MET. | 1 | 09/2008 | 51952147195 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Front left brake air duct | -M- | 1 | 09/2008 | 51747891379 | Shop at ECS Tuning | ||||
| -- | Front right brake air duct | -M- | 1 | 09/2008 | 51747891380 | Shop at ECS Tuning | ||||
| -- | Panel for activated carbon filter | 1 | 09/2008 | 51717070141 | $16.37 | Shop at ECS Tuning | ||||
| -- | Cover, bottom left | 1 | 09/2008 | 51717892801 | $47.02 | Shop at ECS Tuning | ||||
| -- | Cover, bottom right | 1 | 09/2008 | 51717892802 | $47.02 | Shop at ECS Tuning | ||||
| -- | Insert for bumper, rear | -M- | 1 | 09/2008 | 51127892139 | $84.92 | Shop at ECS Tuning | |||
| For vehicles with Headlight cleaning system and Park Distance Control (PDC), rear |
S502A=Yes S507A=Yes |
|||||||||
| 01 | Retrofit kit M aerodyn. package | GRUNDIERT | 1 | 09/2008 | 51952147164 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Front left brake air duct | -M- | 1 | 09/2008 | 51747891379 | Shop at ECS Tuning | ||||
| -- | Front right brake air duct | -M- | 1 | 09/2008 | 51747891380 | Shop at ECS Tuning | ||||
| -- | Panel for activated carbon filter | 1 | 09/2008 | 51717070141 | $16.37 | Shop at ECS Tuning | ||||
| -- | Cover, bottom left | 1 | 09/2008 | 51717892801 | $47.02 | Shop at ECS Tuning | ||||
| -- | Cover, bottom right | 1 | 09/2008 | 51717892802 | $47.02 | Shop at ECS Tuning | ||||
| -- | Insert for bumper, rear | -M- | 1 | 09/2008 | 51127892139 | $84.92 | Shop at ECS Tuning | |||
| For vehicles with Headlight cleaning system and Park Distance Control (PDC), rear When ordering indicate color code |
S502A=Yes S507A=Yes |
|||||||||
| 01 | Retrofit kit M aerodyn.package, paint. | CODE - UNI/MET. | 1 | 09/2008 | 51952147198 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Front left brake air duct | -M- | 1 | 09/2008 | 51747891379 | Shop at ECS Tuning | ||||
| -- | Front right brake air duct | -M- | 1 | 09/2008 | 51747891380 | Shop at ECS Tuning | ||||
| -- | Panel for activated carbon filter | 1 | 09/2008 | 51717070141 | $16.37 | Shop at ECS Tuning | ||||
| -- | Cover, bottom left | 1 | 09/2008 | 51717892801 | $47.02 | Shop at ECS Tuning | ||||
| -- | Cover, bottom right | 1 | 09/2008 | 51717892802 | $47.02 | Shop at ECS Tuning | ||||
| -- | Insert for bumper, rear | -M- | 1 | 09/2008 | 51127892139 | $84.92 | Shop at ECS Tuning | |||
| For vehicles with Headlight cleaning system and Park Distance Control (PDC) |
S502A=Yes S508A=Yes |
|||||||||
| 01 | Retrofit kit M aerodyn. package | GRUNDIERT | 1 | 09/2008 | 51952147165 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Front left brake air duct | -M- | 1 | 09/2008 | 51747891379 | Shop at ECS Tuning | ||||
| -- | Front right brake air duct | -M- | 1 | 09/2008 | 51747891380 | Shop at ECS Tuning | ||||
| -- | Panel for activated carbon filter | 1 | 09/2008 | 51717070141 | $16.37 | Shop at ECS Tuning | ||||
| -- | Cover, bottom left | 1 | 09/2008 | 51717892801 | $47.02 | Shop at ECS Tuning | ||||
| -- | Cover, bottom right | 1 | 09/2008 | 51717892802 | $47.02 | Shop at ECS Tuning | ||||
| -- | Insert for bumper, rear | -M- | 1 | 09/2008 | 51127892139 | $84.92 | Shop at ECS Tuning | |||
| For vehicles with Headlight cleaning system and Park Distance Control (PDC) When ordering indicate color code |
S502A=Yes S508A=Yes |
|||||||||
| 01 | Retrofit kit M aerodyn.package, paint. | CODE - UNI/MET. | 1 | 09/2008 | 51952147199 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Front left brake air duct | -M- | 1 | 09/2008 | 51747891379 | Shop at ECS Tuning | ||||
| -- | Front right brake air duct | -M- | 1 | 09/2008 | 51747891380 | Shop at ECS Tuning | ||||
| -- | Panel for activated carbon filter | 1 | 09/2008 | 51717070141 | $16.37 | Shop at ECS Tuning | ||||
| -- | Cover, bottom left | 1 | 09/2008 | 51717892801 | $47.02 | Shop at ECS Tuning | ||||
| -- | Cover, bottom right | 1 | 09/2008 | 51717892802 | $47.02 | Shop at ECS Tuning | ||||
| -- | Insert for bumper, rear | -M- | 1 | 09/2008 | 51127892139 | $84.92 | Shop at ECS Tuning | |||
| For vehicles with Control of number-plate attachment |
S992A=Yes |
|||||||||
| 02 | License plate holder | -M- US/JAP | 1 | 09/2008 | 51117891529 | $17.58 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
