Retrofit kit M aerodyn. package for BMW 3 Series E46 320i (2000)

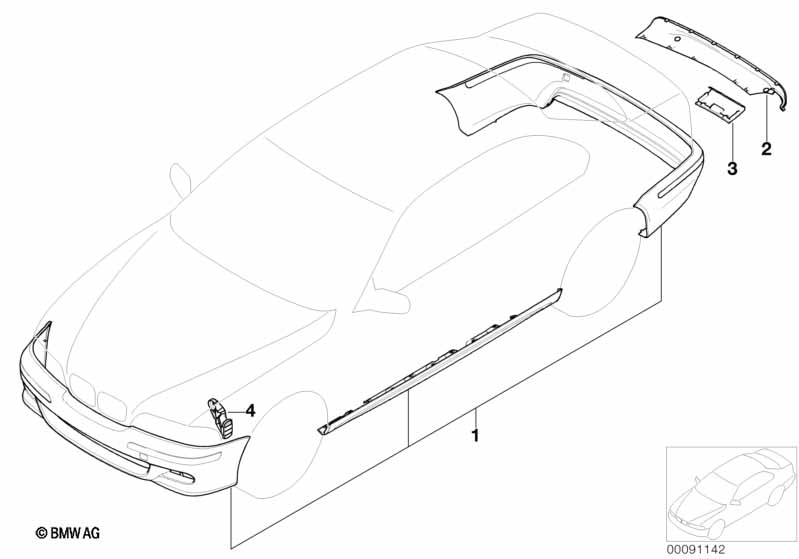

This Retrofit kit M aerodyn. package technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | The retrofit kits listed below are basic kits only - according to vehicle equipment and retrofit package involved they still need to be completed by various items to be found on PTU 51 3275. Retrofit possible only in vehicles with foglamps not in connection with BMW independent park heating Important notice: The installation instructions are not included in the retrofit kit. Print out the latest update of the instructions from the Aftersales Assistance Portal (ASAP) and hand them over to the customer. |
|||||||||
| 01 | Retrofit kit M aerodyn. package | GRUNDIERT | 1 | 09/2001 | 51710139650 | $1458.00 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Park Distance Control (PDC) |
S508A=Yes |
|||||||||
| 01 | Retrofit kit M aerodyn. package | GRUNDIERT | 1 | 09/2001 | 51710139649 | $1458.00 | ENDED | Shop at ECS Tuning | ||
| additionally required parts: | ||||||||||
| 02 | Cover, lower part center | M | 1 | 51127891916 | $149.76 | Shop at ECS Tuning | ||||
| For vehicles with Towing hitch, detachable additionally required parts: |
S235A=Yes |
|||||||||
| 02 | Cover, lower part center | M | 1 | 51127893073 | $149.76 | Shop at ECS Tuning | ||||
| 03 | Trailer hitch flap | M | 1 | 51127893074 | $41.39 | Shop at ECS Tuning | ||||
| 04 | Support, side panel front left | 1 | 51117895415 | $5.28 | Shop at ECS Tuning | |||||
| 04 | Support, side panel front right | 1 | 51117895416 | $5.28 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
