Retrofit kit M aerodyn. package for BMW 5 Series E34 525i (1995)

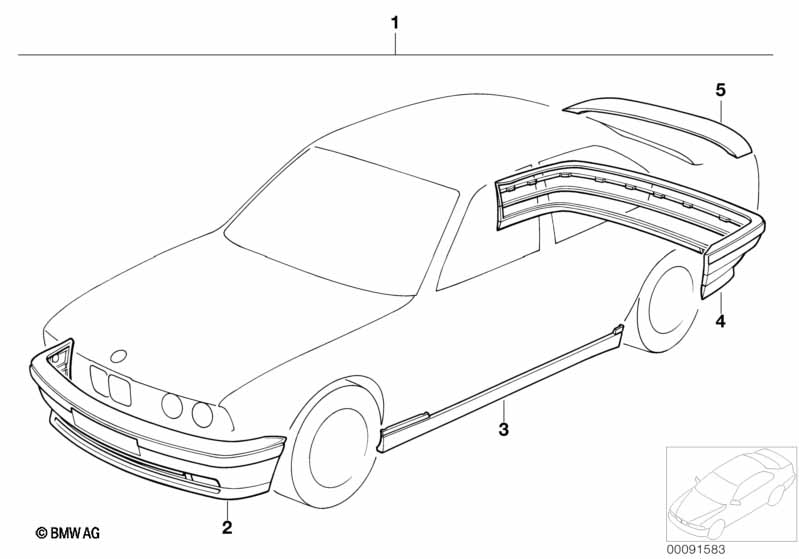

This Retrofit kit M aerodyn. package technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Fitting of complete package only (front spoiler, door sill, and rear apron) |
|||||||||
| For vehicles with Park Distance Control (PDC) |
S508A=No |
|||||||||
| 01 | Retrofit kit M aerodyn. package | 1 | 51719061649 | ENDED, ABE 9786608, ABE 9786609, ABE 9787745, ABE 9787746 | Shop at ECS Tuning | |||||
| 03 | Retrofit kit, M door sill trim, primed | 1 | 51712231639 | $758.00 | ENDED, ABE 9786608 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Lifting jack | 800KG | 1 | 71122226742 | $76.97 | Shop at ECS Tuning | ||||
| For vehicles with Park Distance Control (PDC) |
S508A=No |
|||||||||
| 04 | Bumper trim panel, rear | M TECHNIC | 1 | 51122230383 | $1293.37 | ENDED | Shop at ECS Tuning | |||
| 05 | Retrofit kit, M rear spoiler, primed | 1 | 51712231669 | $762.00 | ENDED, ABE 9786609 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- ABE = Allgemeine Betriebserlaubnis (General Operating Permit)
