Retrofit, M rear spoiler for BMW 5 Series F10 523i (2011)

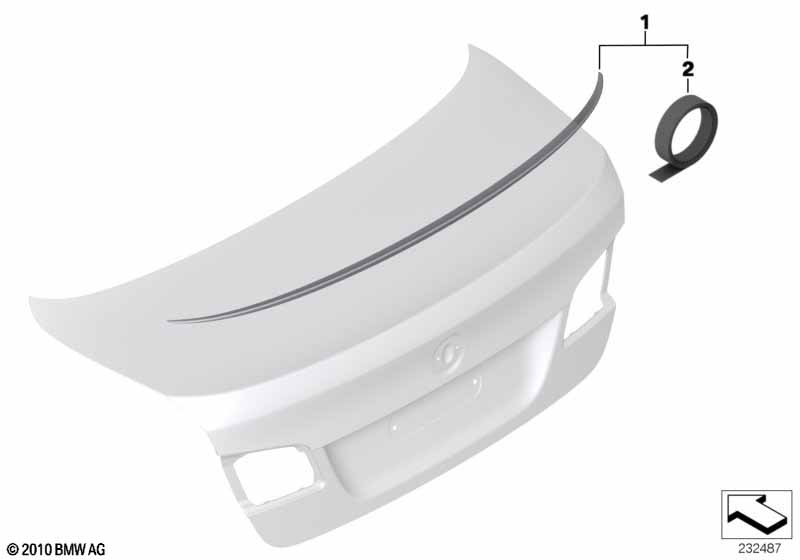

This Retrofit, M rear spoiler technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Primed rear spoiler | M | 1 | 51628049268 | Shop at ECS Tuning | |||||
| 02 | Adhesive tape | M | 1 | 51628049269 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series F10 523i Retrofit, M rear spoiler?
- This technical diagram illustrates the Retrofit, M rear spoiler within the Retrofitting / conversion / accessories group for the 5 Series F10 523i produced during 2011. It provides a detailed exploded view of the components, identifying key parts such as the Primed rear spoiler (Part #51628049268).
- Which models use the hardware listed in this Retrofit, M rear spoiler?
- The hardware and components featured in the Retrofit, M rear spoiler are specific to the 5 Series F10 523i produced during 2011. These technical specifications ensure that parts like the Primed rear spoiler (51628049268) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Retrofit, M rear spoiler assembly?
- Each item in the Retrofit, M rear spoiler corresponds to the numbered list below the illustration. For the 5 Series F10 523i, you can identify the Primed rear spoiler by locating its position on the schematic, which then links to the official BMW part number 51628049268 for the Retrofitting / conversion / accessories section.
